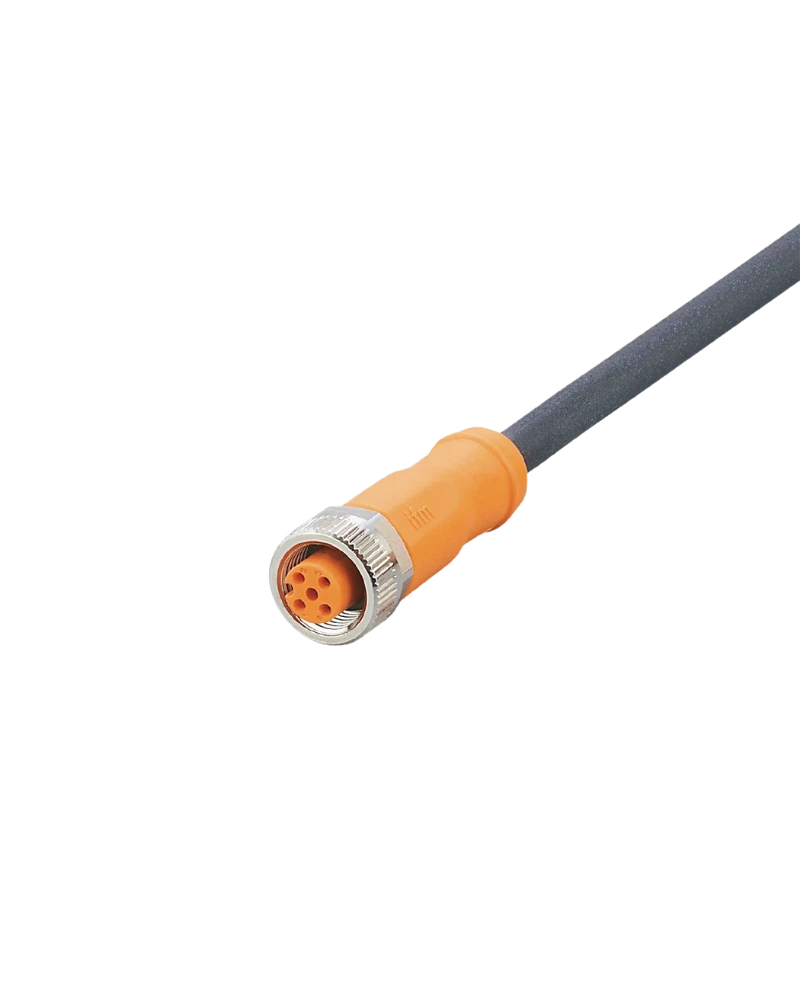

The IFM EVC709 is a 20 m connecting cable with a straight M12 socket designed for extended industrial automation connections.
Its 4 × 1.00 mm² PUR cable provides a large conductor cross-section for efficient power transmission.
The cable is halogen-free and resistant to oils and coolants.
Its high IP protection and durable construction make it suitable for demanding field-module and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC709 is designed for long-distance electrical connections in industrial automation systems. Its 20 m cable length allows convenient routing across large machines and production areas.
The cable features a straight A-coded M12 socket with four gold-plated contacts. The 4 × 1.00 mm² PUR cable supports reliable electrical and power transmission.
The EVC709 uses a TPU connector housing, nickel-plated brass nut and FKM sealing. Its halogen-free construction provides reliable operation in industrial environments.
The cable supports less than 250 V AC / 300 V DC and up to 4 A. IP65, IP67, IP68 and IP69K protection and drag-chain suitability make it suitable for demanding automation installations.
20 m cable length
Straight M12 socket
A-coded connector
4 contacts
4 × 1.00 mm² PUR cable
6.2 mm cable diameter
Gold-plated contacts
Halogen-free construction
Silicone-free construction
TPU housing
FKM sealing
Nickel-plated brass nut
Oil and coolant resistant
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Factory automation
Field modules
Power supply connections
Machine control systems
Production machinery
Industrial electrical equipment
Machine tools
Long-distance automation wiring
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EVC709 |
| Model | ADOGH040MSP0020H04 |
| Product Type | Connecting Cable with Socket |
| Cable Length | 20 m |
| Connector | M12 Straight Socket |
| Coding | A-coded |
| Contacts | 4 |
| Cable Material | PUR |
| Cable Cross Section | 4 × 1.00 mm² |
| Cable Diameter | 6.2 mm |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Contact Material | Gold-plated |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | FKM |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Weight | Approx. 1.316 kg |
