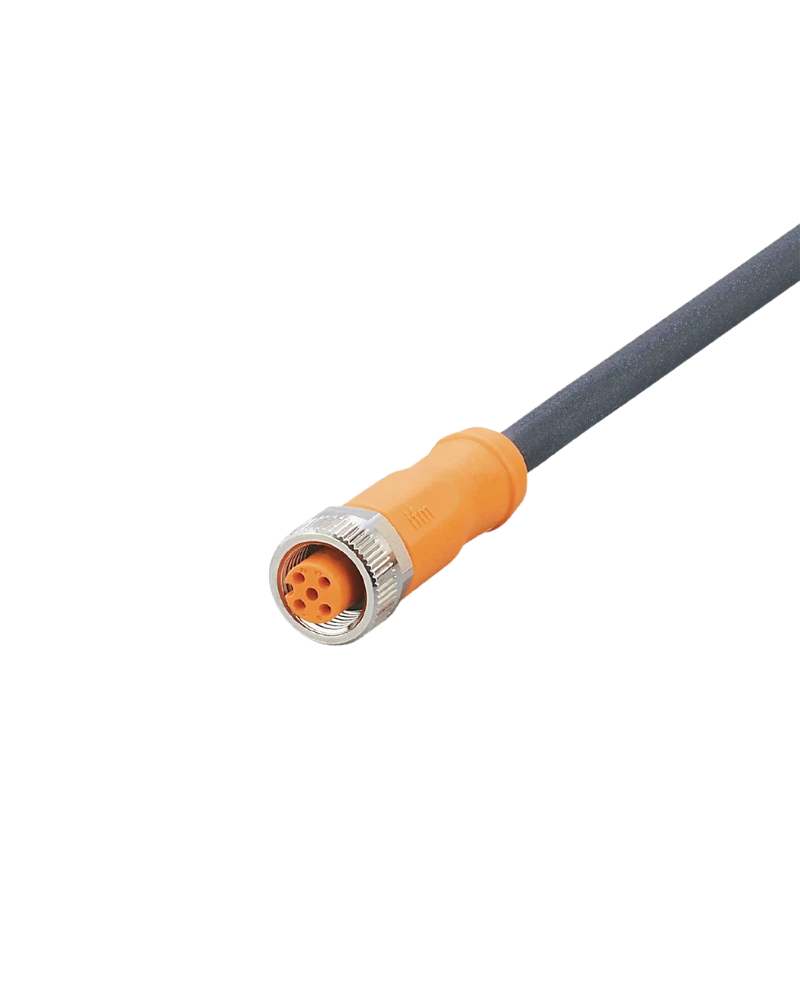

The IFM EVC707 is a 5 m connecting cable with a straight M12 socket for industrial power and automation connections.
Its large 4 × 1.00 mm² conductor cross-section helps reduce voltage drop and supports higher current transmission.
The PUR cable is resistant to oils and coolants and provides excellent mechanical durability.
High IP protection and drag-chain suitability make it suitable for demanding factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC707 is designed for reliable power and signal connections to industrial field modules and automation equipment. Its 5 m length provides flexible routing over larger machine installations.
The cable features a straight A-coded M12 socket with four gold-plated contacts. The 4 × 1.00 mm² PUR cable provides a larger conductor cross-section for efficient power transmission.
The cable uses a TPU housing, nickel-plated brass locking nut and FKM sealing. It is halogen-free, silicone-free and resistant to oils and coolants.
The EVC707 supports less than 250 V AC / 300 V DC and up to 4 A. IP65, IP67, IP68 and IP69K protection and drag-chain suitability support reliable use in harsh industrial environments.
5 m cable length
Straight M12 socket
A-coded connector
4 contacts
4 × 1.00 mm² PUR cable
Large cable cross-section
Gold-plated contacts
Halogen-free
Silicone-free
TPU housing
FKM sealing
Nickel-plated brass nut
Oil and coolant resistant
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Factory automation
Field modules
Power supply connections
Machine tools
Industrial control equipment
Production machinery
Sensor and actuator systems
Automation panels
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EVC707 |
| Model | ADOGH040MSP0005H04 |
| Product Type | Connecting Cable with Socket |
| Cable Length | 5 m |
| Connector | M12 Straight Socket |
| Coding | A-coded |
| Contacts | 4 |
| Cable Material | PUR |
| Cable Cross Section | 4 × 1.00 mm² |
| Cable Diameter | 6.2 mm |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Contact Material | Gold-plated |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | FKM |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Weight | Approx. 347.7 g |
