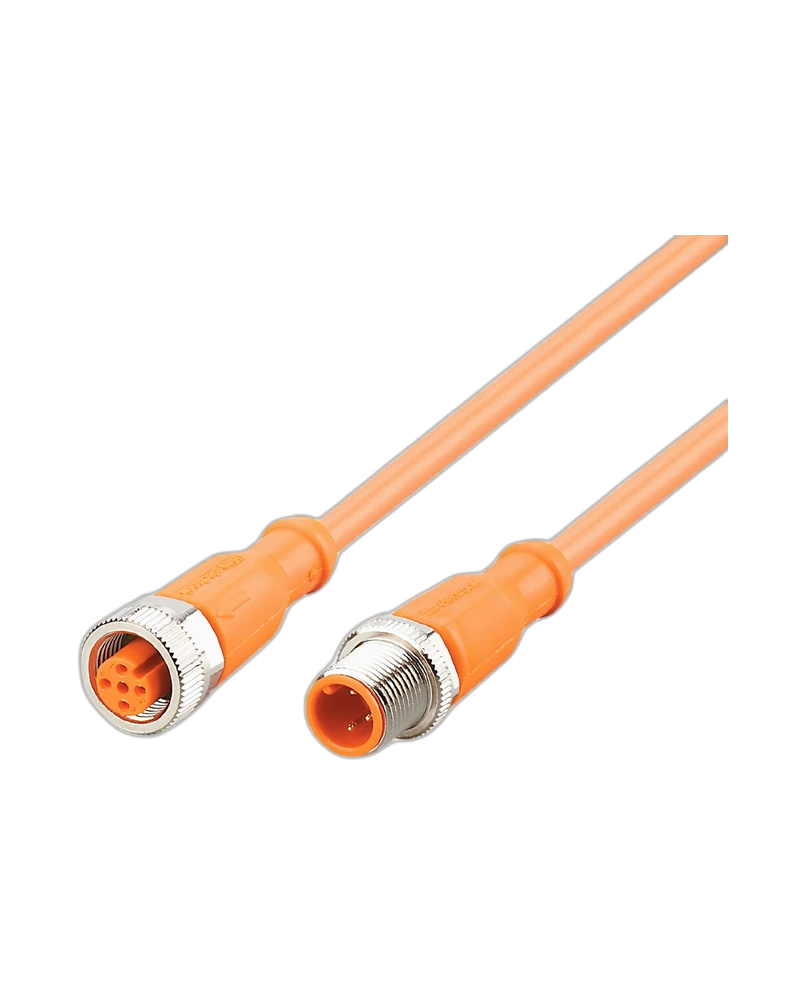

The IFM EVC702 is a compact 0.3 m M12 connection cable designed for reliable industrial connections.
It features straight M12 plug and socket connectors with gold-plated contacts.
The PUR cable is designed for industrial environments and is resistant to welding sparks.
Its high IP protection and durable construction make it suitable for machine automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC702 provides a short and dependable M12-to-M12 connection for industrial automation components. Its 0.3 m length is useful where compact wiring and close component placement are required.
The cable features straight A-coded M12 plug and socket connectors with gold-plated contacts. The 3 × 0.34 mm² PUR cable supports reliable electrical transmission.
The cable features TPU connector bodies, nickel-plated brass locking components and FKM sealing. Its orange PUR cable is designed to resist welding sparks, making it suitable for machine-tool environments.
The EVC702 supports demanding industrial applications and is suitable for drag-chain installations. Its IP65, IP67, IP68 and IP69K protection helps provide dependable operation in harsh environments.
0.3 m cable length
Straight M12 plug
Straight M12 socket
M12-to-M12 connection
A-coded connectors
3 × 0.34 mm² PUR cable
Welding-spark resistant cable
Gold-plated contacts
TPU housing
FKM sealing
Nickel-plated brass nuts
Halogen-free cable
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
More than 2 million bending cycles
Oil and coolant resistant
Industrial automation
Factory automation
Machine tools
Welding environments
Sensor connections
Actuator connections
Machine control systems
Production machinery
Industrial control equipment
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EVC702 |
| Model | VDOGH040MSS00,3T04STGH030MSS |
| Product Type | Connection Cable |
| Cable Length | 0.3 m |
| Connector 1 | M12 Straight Plug |
| Connector 2 | M12 Straight Socket |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Cable Colour | Orange |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Contact Material | Gold-plated |
| Housing Material | TPU |
| Sealing Material | FKM |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitable | Yes |
| Welding Spark Resistant | Yes |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
