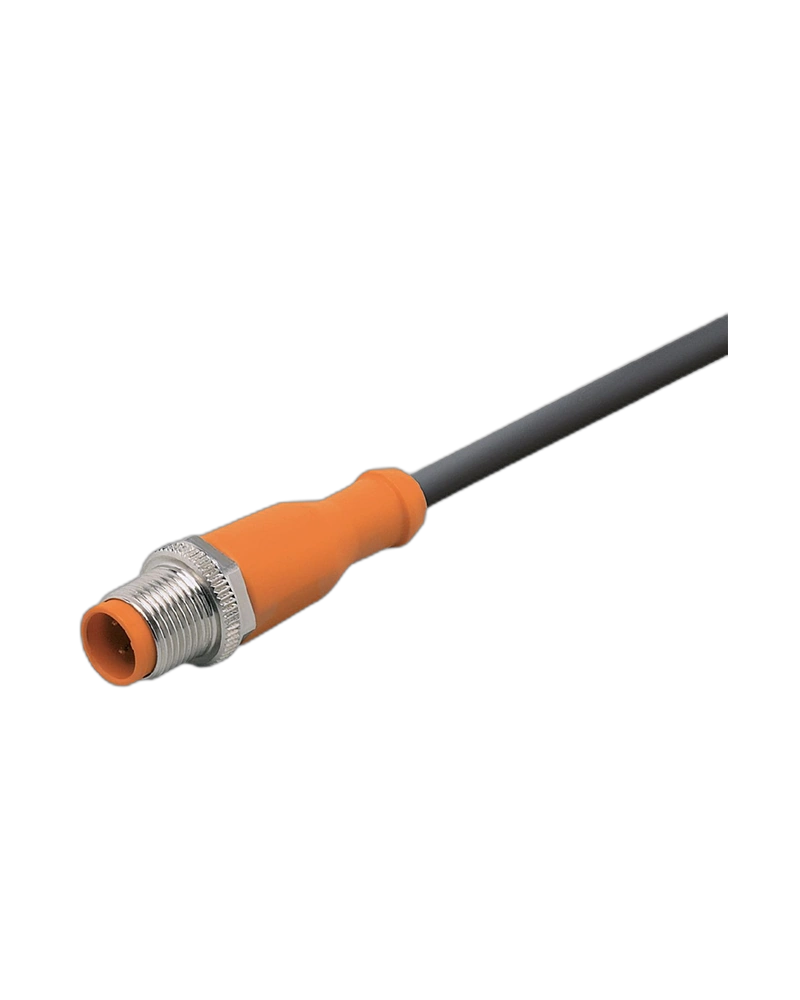

The IFM EVC701 is a 2.5 m connection cable with a straight M8 plug for industrial automation applications.
It uses a 3 × 0.25 mm² PUR cable with gold-plated contacts for reliable electrical connections.
The halogen-free cable provides flexibility and durability in demanding machine environments.
Its high IP protection and drag-chain suitability make it suitable for sensors and automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC701 is designed to provide a dependable connection between M8-compatible industrial equipment and control systems. Its 2.5 m length offers convenient cable routing.
The cable uses a straight M8 plug with A-coding and gold-plated contacts. The 3 × 0.25 mm² PUR cable provides flexible and reliable electrical connectivity.
The connector body is made from TPU with a nickel-plated brass nut. The cable is halogen-free and suitable for industrial environments involving movement and mechanical stress.
The EVC701 supports 50 V AC / 60 V DC operation and a 3 A current rating. IP65, IP67, IP68 and IP69K protection and drag-chain suitability support reliable machine automation applications.
2.5 m cable length
Straight M8 plug
A-coded connector
3-pin connection
3 × 0.25 mm² PUR cable
3.7 mm cable diameter
Gold-plated contacts
Halogen-free
Silicone-free
TPU housing
Nickel-plated brass nut
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Oil and coolant resistant
Industrial automation
Factory automation
Sensor connections
Machine tools
Control equipment
Production machinery
Industrial electrical systems
Automation panels
Moving machinery
Cable-chain installations
| Specification | Details |
|---|---|
| Product Code | EVC701 |
| Model | ASTGF030MSS02,5H03 |
| Product Type | Connecting Cable with Plug |
| Cable Length | 2.5 m |
| Connector | M8 Straight Plug |
| Coding | A-coded |
| Contacts | 3 |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.25 mm² |
| Cable Diameter | 3.7 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Contact Material | Gold-plated |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitable | Yes |
| Bending Cycles | > 5 million |
| Maximum Travel Speed | 3.3 m/s |
| Weight | Approx. 61 g |
