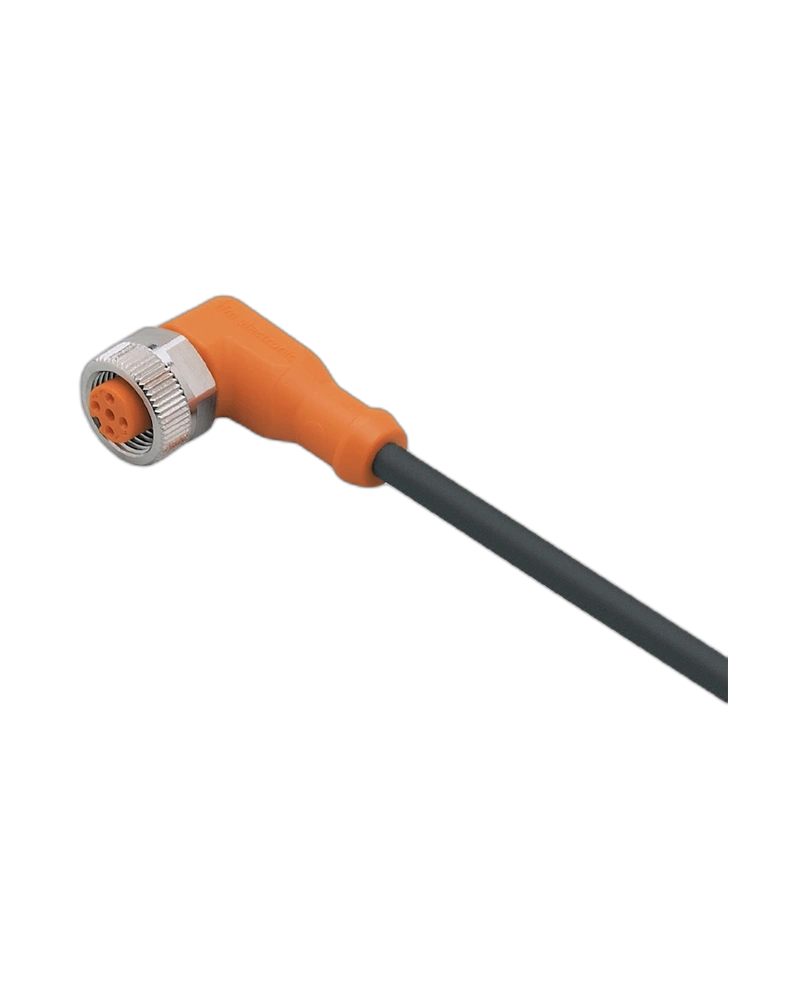

The IFM EVC698 is a 15 m connecting cable with an angled M12 socket for industrial automation and field applications.
Its shielded PUR cable provides reliable electrical transmission and improved protection against electromagnetic interference.
The cable uses gold-plated contacts and robust industrial-grade materials.
It is suitable for long-distance sensor and automation connections in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC698 is designed to provide a dependable connection between M12-compatible sensors and automation equipment. Its 15 m length supports installations requiring extended cable routing.
The cable features an angled M12 socket with A-coded, four-pin gold-plated contacts. The shielded 4 × 0.34 mm² PUR cable helps provide reliable signal transmission.
The cable uses a TPU housing, nickel-plated brass nut and FKM sealing. Its halogen-free construction and resistance to industrial conditions make it suitable for factory automation.
The EVC698 supports AC/DC operation with a 4 A current rating. IP65 and IP67 protection helps protect the connection from dust and moisture in industrial installations.
15 m cable length
Angled M12 socket
A-coded connector
4-pin connection
4 × 0.34 mm² PUR cable
Shielded cable
Gold-plated contacts
Halogen-free cable
Silicone-free construction
TPU housing
FKM sealing
Nickel-plated brass nut
IP65 and IP67 protection
Drag-chain suitable
Oil and coolant resistant
Industrial automation
Factory automation
Sensor connections
Field modules
Machine control systems
Industrial electrical equipment
Long-distance sensor connections
Automation panels
Production machinery
Machine-tool applications
| Specification | Details |
|---|---|
| Product Code | EVC698 |
| Model | ADOAH040MSS0015K04 |
| Product Type | Connecting Cable with Socket |
| Cable Length | 15 m |
| Connector | M12 Angled Socket |
| Coding | A-coded |
| Number of Contacts | 4 |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Cable Type | Shielded |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Contact Material | Gold-plated |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | FKM |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × Cable Diameter |
| Weight | Approx. 564 g |
