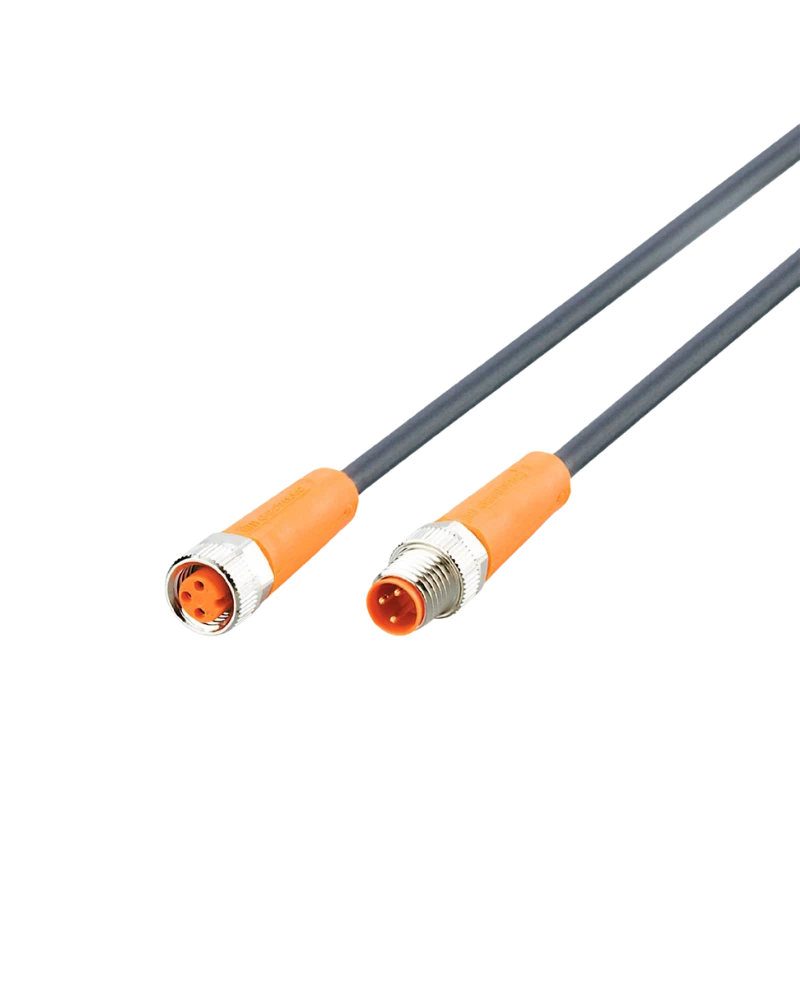

The IFM EVC697 is a 3.5 m industrial connection cable designed for reliable connections between automation components.
It features straight M8 connectors with A-coded, gold-plated contacts.
The flexible PUR cable provides dependable signal transmission and mechanical durability.
Its high protection rating and drag-chain suitability make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC697 is designed for reliable electrical connections in industrial automation systems. Its 3.5 m length provides flexible routing between sensors, actuators and control equipment.
The cable uses straight M8 connectors with A-coding and gold-plated contacts. The 3 × 0.25 mm² PUR cable provides flexible routing and dependable signal transmission.
The cable is halogen-free and silicone-free, with a robust TPU connector body, nickel-plated brass locking components and FKM sealing. It is suitable for industrial environments involving vibration, shock, oils and coolants.
The EVC697 supports demanding machine automation applications and is suitable for drag-chain use. Its high IP protection and more than 5 million bending cycles support reliable operation in moving machinery.
3.5 m cable length
Straight M8 connectors
M8 plug-to-socket connection
A-coded design
3 × 0.25 mm² PUR cable
Gold-plated contacts
Halogen-free construction
Silicone-free construction
TPU connector housing
FKM sealing
Nickel-plated brass locking nut
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Oil and coolant resistant
Industrial automation systems
Factory automation
Sensor connections
Actuator connections
Machine control systems
Production machinery
Industrial control equipment
Moving machinery
Cable-chain installations
Machine-tool applications
| Specification | Details |
|---|---|
| Product Code | EVC697 |
| Model | VDOGF040MSS03,5H03STGF030MSS |
| Product Type | Connection Cable |
| Cable Length | 3.5 m |
| Connector Type | M8 |
| Connector Design | Straight |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.25 mm² |
| Cable Diameter | 3.7 mm |
| Contact Material | Gold-plated |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | FKM |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 85.8 g |
