The IFM EVC696 is a 10 m Y connection cable designed for reliable branching of industrial automation connections. It features an M12 plug with one M12 plug and one M12 socket. The PUR cable provides flexible and durable installation for longer machine connections. High IP protection and drag-chain suitability support reliable operation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC696 provides an extended-length Y connection solution for industrial automation systems. Its 10 m cable length allows convenient routing across larger machines and production installations.
Y-Connection Design

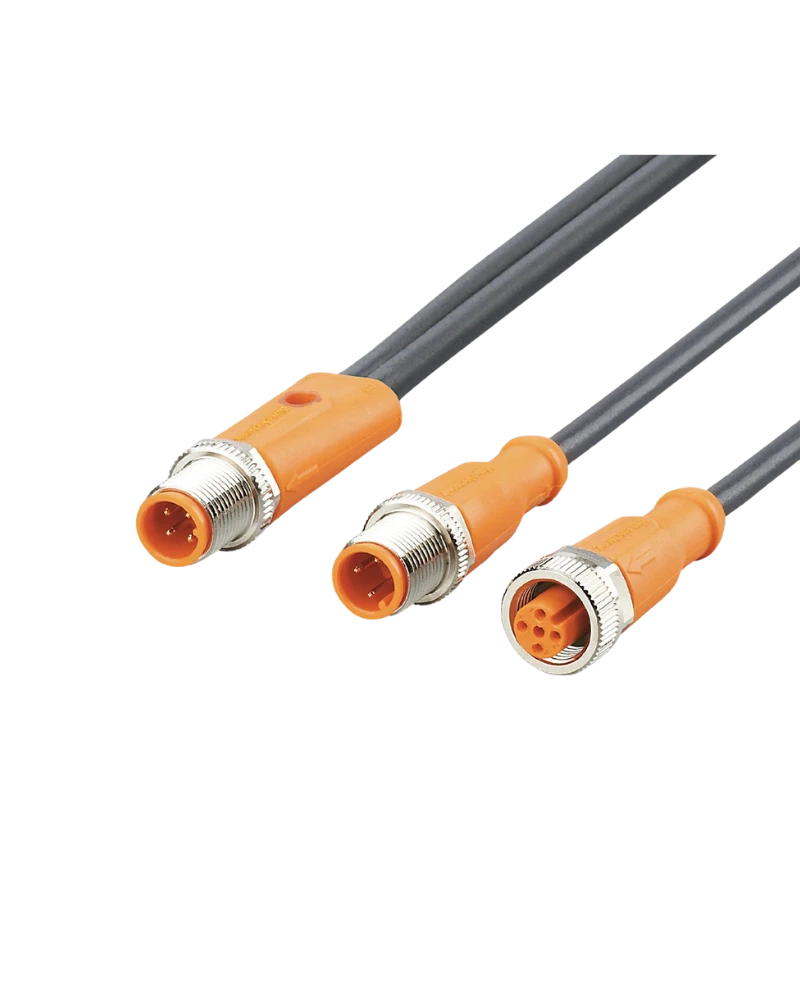

The cable features an M12 plug, one M12 plug and one M12 socket. This two-way Y configuration enables convenient branching and connection of compatible automation components.
Industrial Durability
The EVC696 uses halogen-free and silicone-free PUR cable with TPU connector bodies, nickel-plated brass nuts and Viton sealing. Gold-plated contacts support dependable electrical connectivity.
Application Performance
The EVC696 operates at 24 V DC and supports a 4 A current rating. IP65, IP67, IP68 and IP69K protection, drag-chain suitability and more than 5 million bending cycles make it suitable for demanding industrial automation applications.
Key Features
10 m cable length
Y connection configuration
M12 plug
1 × M12 plug
1 × M12 socket
24 V DC operating voltage
4 A current rating
PUR cable
Gold-plated contacts
Silicone-free construction
Halogen-free construction
Viton sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Oil and coolant resistant
Applications
Industrial automation
Factory automation
Sensor signal distribution
Actuator connections
Machine control systems
Production machinery
Industrial control equipment
Large machine installations
Moving machinery
Automation wiring
| Specification | Details |
|---|---|
| Product Code | EVC696 |
| Model | YDSGHDA0MSS0010HDASTGH030MSS |
| Product Type | Y Connection Cable |
| Cable Length | 10 m |
| Connection Type | Y connection |
| Main Connector | M12 Plug |
| Branch Connectors | 1 × M12 Plug + 1 × M12 Socket |
| Electrical Design | DC |
| Operating Voltage | 24 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Cable Material | PUR |
| Cable Configuration | 2 × 0.34 mm² + 5 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Cable Colour | Black |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | Viton |
| Contacts | Gold-plated |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Drag Chain Suitable | Yes |
| Weight | Approx. 660 g |
