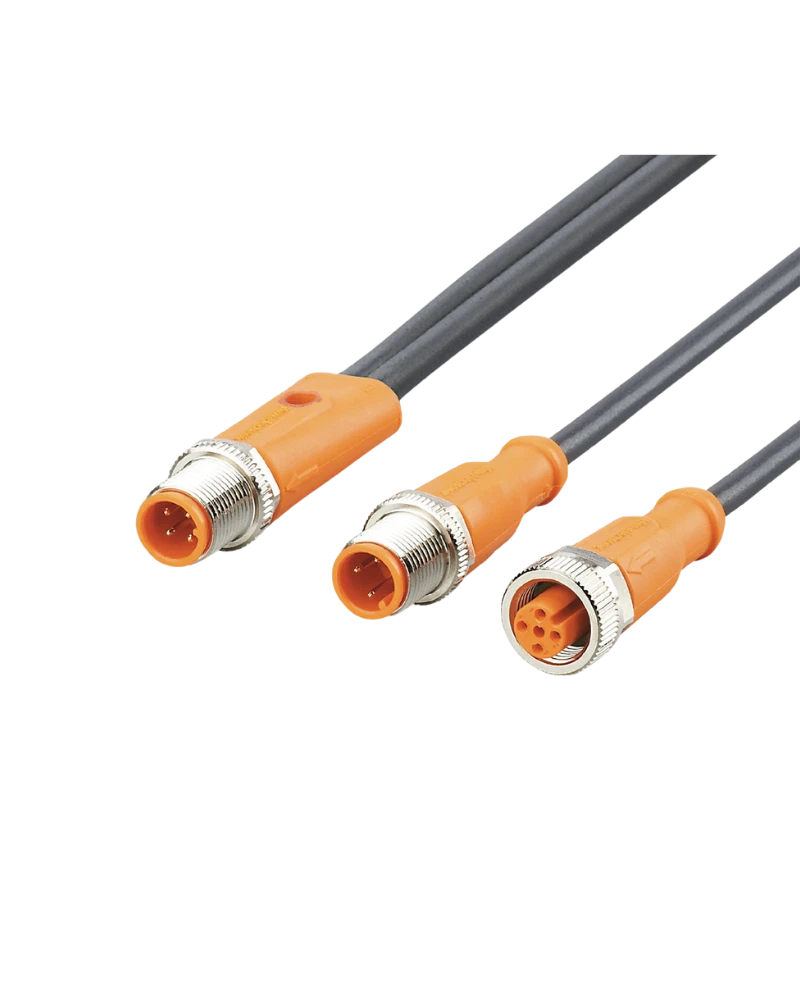

The IFM EVC695 is a 5 m Y connection cable designed for branching industrial automation connections. It features an M12 plug with one M12 plug and one M12 socket for flexible signal distribution. The PUR cable provides reliable performance, while gold-plated contacts support stable electrical connections. High IP protection and drag-chain suitability make it suitable for demanding industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC695 provides a practical Y-shaped connection solution for industrial automation systems. Its 5 m cable length is suitable for installations where longer routing is required.
Y-Connection Design
The cable incorporates an M12 plug, one M12 plug and one M12 socket. The two-way Y configuration simplifies the distribution of signals between compatible automation components.
Industrial Durability
The EVC695 uses silicone-free and halogen-free PUR cable, TPU connector bodies, nickel-plated brass nuts and Viton sealing. Gold-plated contacts provide dependable electrical connectivity.
Application Performance
The cable operates at 24 V DC and supports a 4 A current rating. IP65, IP67, IP68 and IP69K protection, drag-chain suitability and more than 5 million bending cycles support reliable use in demanding automation applications.
Key Features
5 m cable length
Y connection configuration
M12 plug
1 × M12 plug
1 × M12 socket
24 V DC operation
4 A current rating
PUR cable
Gold-plated contacts
Silicone-free construction
Halogen-free construction
Viton sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Oil and coolant resistant
Applications
Industrial automation systems
Factory automation
Sensor signal distribution
Actuator connections
Machine control systems
Production machinery
Industrial control equipment
Automation networks
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EVC695 |
| Model | YDSGHDA0MSS0005HDASTGH030MSS |
| Product Type | Y Connection Cable |
| Cable Length | 5 m |
| Connection Type | Y connection |
| Main Connector | M12 Plug |
| Branch Connectors | 1 × M12 Plug + 1 × M12 Socket |
| Electrical Design | DC |
| Operating Voltage | 24 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Cable Material | PUR |
| Cable Configuration | 2 × 0.34 mm² + 5 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Cable Colour | Black |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | Viton |
| Contacts | Gold-plated |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Drag Chain Suitable | Yes |
| Weight | Approx. 357 g |
