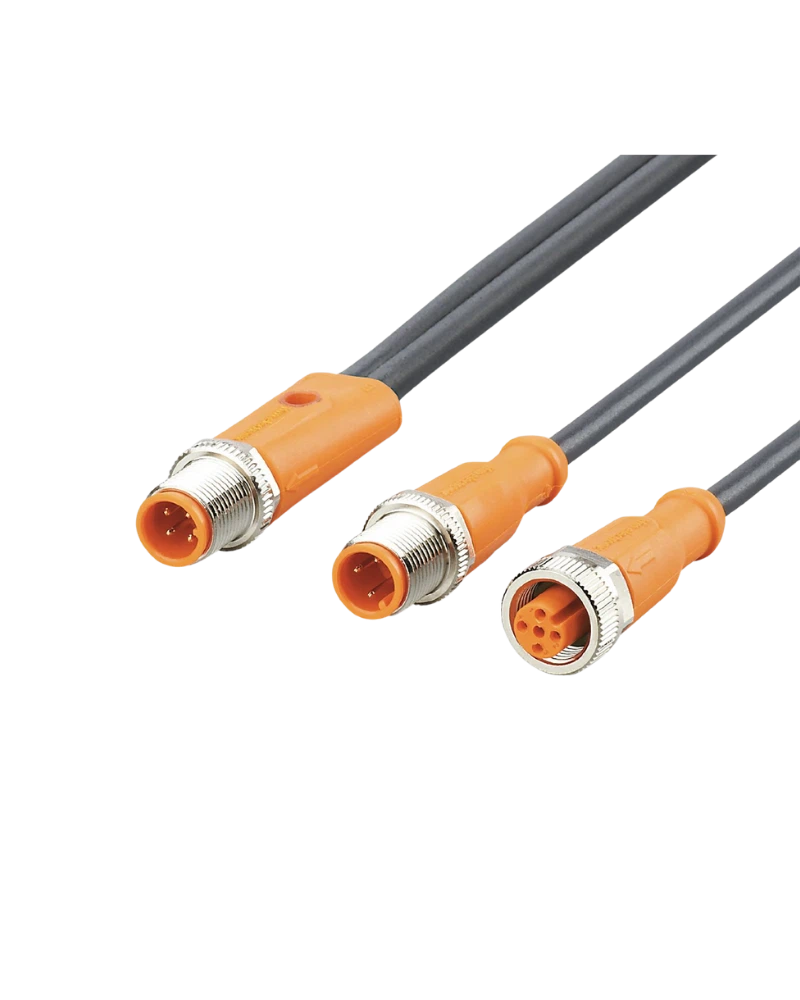

The IFM EVC694 is a 2 m Y connection cable designed for reliable branching of industrial automation connections. It provides an M12 plug with one M12 plug and one M12 socket. The PUR cable and gold-plated contacts ensure dependable electrical connectivity. High IP protection and robust materials make it suitable for demanding factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC694 provides a convenient Y-shaped connection for industrial sensors, actuators and automation equipment. Its 2 m cable length allows flexible routing within machine installations.
Y-Connection Design
The cable uses an M12 plug with one M12 plug and one M12 socket. This two-way configuration provides a practical solution for branching compatible M12 automation connections.
Industrial Durability
Silicone-free and halogen-free construction, together with TPU connector bodies, nickel-plated brass nuts and Viton sealing, supports reliable operation in harsh environments.
Application Performance
The EVC694 operates at 24 V DC and supports a 4 A current rating. IP65, IP67, IP68 and IP69K protection helps maintain reliable connections in industrial environments.
Key Features
2 m cable length
Y connection configuration
M12 plug
1 × M12 plug
1 × M12 socket
24 V DC operation
4 A current rating
PUR cable
Gold-plated contacts
Silicone-free
Halogen-free
Viton sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Oil and coolant resistant
Applications
Industrial automation
Factory automation
Sensor connections
Actuator connections
Signal distribution
Machine control systems
Production equipment
Industrial control systems
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EVC694 |
| Model | YDSGHDA0MSS0002HDASTGH030MSS |
| Product Type | Y Connection Cable |
| Cable Length | 2 m |
| Connection Type | Y connection |
| Main Connector | M12 Plug |
| Branch Connectors | 1 × M12 Plug + 1 × M12 Socket |
| Electrical Design | DC |
| Operating Voltage | 24 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Cable Material | PUR |
| Cable Configuration | 2 × 0.34 mm² + 5 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | Viton |
| Contacts | Gold-plated |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Drag Chain Suitable | Yes |
