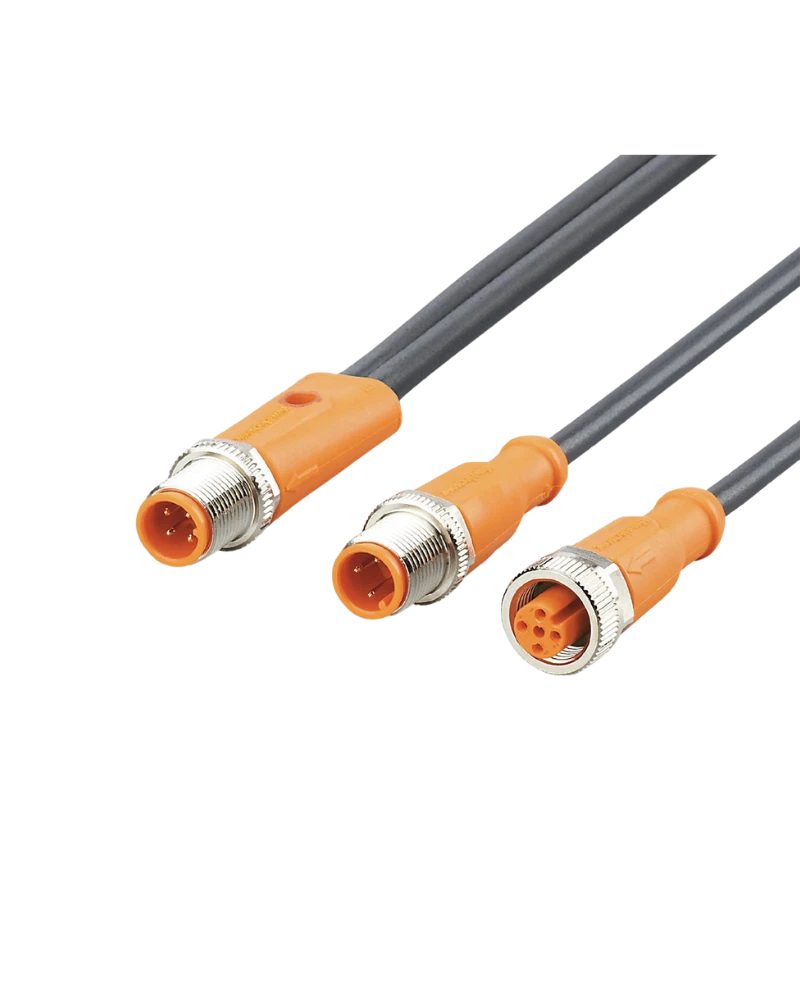

The IFM EVC693 is a 1 m Y connection cable designed for branching industrial automation connections. It features an M12 plug with one M12 plug and one M12 socket, enabling convenient signal distribution. The PUR cable and gold-plated contacts provide reliable electrical performance. Its high IP protection and robust construction make it suitable for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC693 provides a practical Y-shaped connection solution for industrial sensors, actuators and automation devices. Its compact 1 m cable length supports flexible installation around machinery.
Y-Connection Design
The cable incorporates an M12 plug, one M12 plug and one M12 socket. This two-way Y configuration allows convenient branching of compatible automation connections.
Industrial Durability
The cable is silicone-free and halogen-free, with TPU connector bodies, nickel-plated brass nuts and Viton sealing. Gold-plated contacts support reliable electrical connections.
Application Performance
The EVC693 operates at 24 V DC with a 4 A current rating. IP65, IP67, IP68 and IP69K protection, together with drag-chain suitability and more than 5 million bending cycles, makes it suitable for demanding industrial installations.
Key Features
1 m cable length
Y connection configuration
M12 plug
1 × M12 plug
1 × M12 socket
DC electrical design
24 V DC operating voltage
4 A current rating
2 × 0.34 mm² + 5 × 0.34 mm² cable configuration
PUR cable
Gold-plated contacts
Silicone-free
Halogen-free
Viton sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Applications
Industrial automation
Sensor signal distribution
Actuator connections
Machine control systems
Factory automation
Automation wiring
Industrial control equipment
Sensor networks
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EVC693 |
| Model | YDSGHDA0MSS0001HDASTGH030MSS |
| Product Type | Y Connection Cable |
| Cable Length | 1 m |
| Connection Type | Y connection |
| Main Connector | M12 Plug |
| Branch Connectors | 1 × M12 Plug + 1 × M12 Socket |
| Electrical Design | DC |
| Operating Voltage | 24 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Cable Material | PUR |
| Cable Configuration | 2 × 0.34 mm² + 5 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | Viton |
| Contacts | Gold-plated |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Drag Chain Suitable | Yes |
| Weight | Approx. 110 g |
