The IFM EVC692 is a 6 m M12 connection cable designed for dependable industrial automation connections. It features straight M12 plug and socket connectors with gold-plated contacts. The PUR cable provides flexible routing and reliable electrical performance. Its high protection rating and drag-chain suitability make it suitable for demanding industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC692 provides a reliable M12-to-M12 connection for sensors, actuators and automation equipment. Its 6 m length is suitable for installations requiring extended cable routing.
Connector and Cable Design

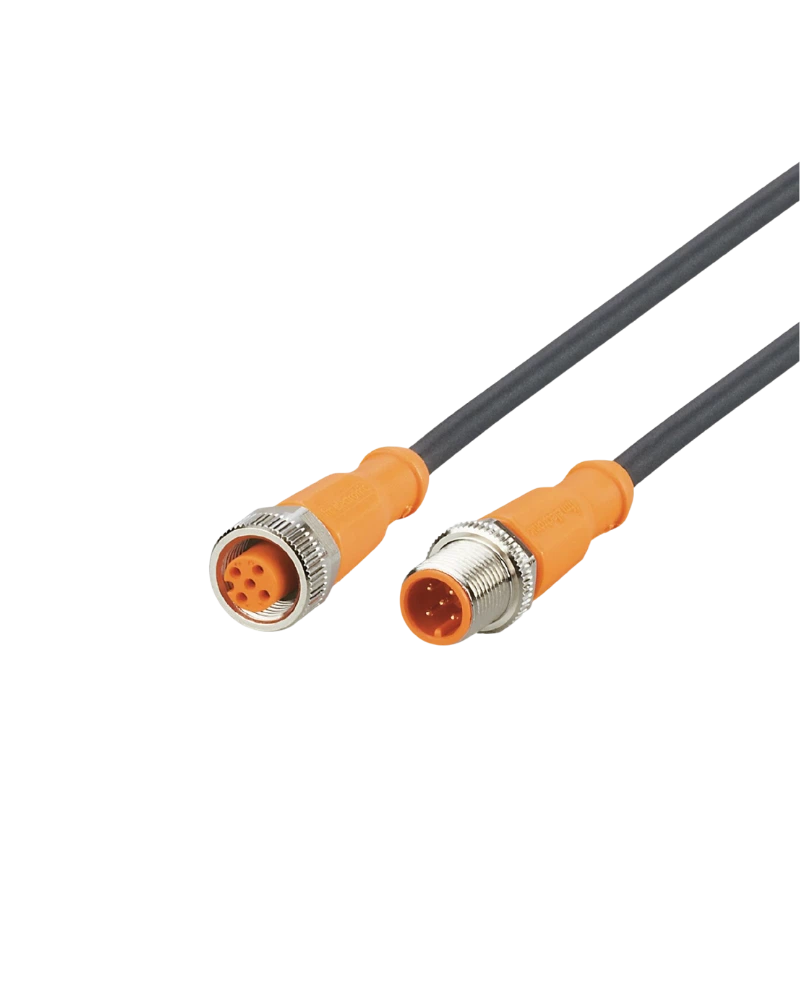

The cable uses straight M12 plug and socket connectors with A-coded, gold-plated contacts. The 4 × 0.34 mm² PUR cable provides dependable signal transmission.
Industrial Durability
The EVC692 is silicone-free and halogen-free. TPU housings, nickel-plated brass nuts and FKM sealing provide protection against demanding industrial conditions.
Application Performance
The cable supports 250 V AC / 300 V DC and a 4 A current rating. IP65, IP67, IP68 and IP69K protection, drag-chain suitability and more than 5 million bending cycles support reliable use in automated machinery.
Key Features
6 m cable length
M12 straight plug
M12 straight socket
M12 to M12 connection
A-coded connectors
4 × 0.34 mm² PUR cable
Gold-plated contacts
AC/DC electrical design
250 V AC / 300 V DC
4 A current rating
Silicone-free
Halogen-free
FKM sealing
Oil and coolant resistant
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Applications
Industrial automation
Factory automation
Machine control systems
Sensor and actuator connections
Production machinery
Industrial control systems
Moving machinery
Long-distance machine connections
Cable-chain applications
| Specification | Details |
|---|---|
| Product Code | EVC692 |
| Model | VDOGH040MSS0006H04STGH040MSS |
| Product Type | Connection Cable |
| Cable Length | 6 m |
| Connector 1 | M12 Straight Plug |
| Connector 2 | M12 Straight Socket |
| Connection | M12 to M12 |
| Coding | A-coded |
| Number of Contacts | 4 |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Cable Colour | Black |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Drag Chain Suitable | Yes |
| Weight | Approx. 225 g |
