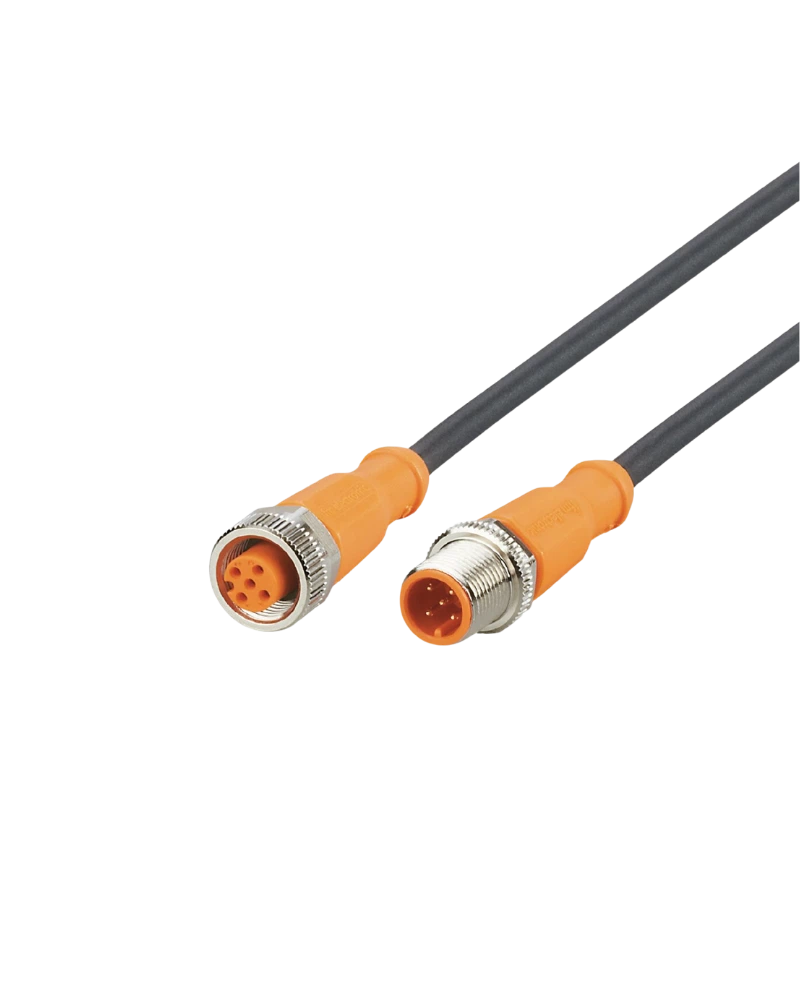

The IFM EVC691 is a 5 m M12 connection cable designed for reliable connections in industrial automation systems. It features straight M12 plug and socket connectors with gold-plated contacts. The PUR cable offers flexibility and resistance to demanding industrial conditions. High IP protection and drag-chain suitability support reliable machine automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC691 provides a reliable M12-to-M12 connection for sensors, actuators and industrial control equipment. Its 5 m length provides extended routing capability for larger machine installations.
Connector and Cable Design
The cable features straight M12 plug and socket connectors with A-coded, gold-plated contacts. The PUR cable provides dependable signal transmission and flexible installation.
Industrial Durability
Silicone-free and halogen-free construction, combined with TPU housing, nickel-plated brass nuts and FKM sealing, provides reliable industrial durability.
Application Performance
The EVC691 supports AC/DC operation and provides IP65, IP67, IP68 and IP69K protection. It is suitable for drag-chain applications and repeated movement in industrial automation environments.
Key Features
5 m cable length
M12 straight plug
M12 straight socket
M12 to M12 connection
A-coded connectors
4 × 0.34 mm² PUR cable
Gold-plated contacts
AC/DC electrical design
250 V AC / 300 V DC
4 A current rating
Silicone-free
Halogen-free
FKM sealing
Oil and coolant resistant
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Applications
Industrial automation
Factory automation
Machine control
Sensor connections
Actuator connections
Production machinery
Moving machinery
Industrial control equipment
Cable-chain applications
| Specification | Details |
|---|---|
| Product Code | EVC691 |
| Model | VDOGH040MSS0005H04STGH040MSS |
| Product Type | Connection Cable |
| Cable Length | 5 m |
| Connector 1 | M12 Straight Plug |
| Connector 2 | M12 Straight Socket |
| Connection | M12 to M12 |
| Coding | A-coded |
| Number of Contacts | 4 |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Drag Chain Suitable | Yes |
| Weight | Approx. 195.2 g |
