The IFM EVC690 is a 4 m M12 connection cable designed for reliable industrial automation connections. It features straight M12 plug and socket connectors with gold-plated contacts. The PUR cable provides flexibility, durability and dependable signal transmission. High protection against environmental conditions makes it suitable for factory and machine automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC690 provides a dependable M12-to-M12 connection for industrial sensors, actuators and automation components. Its 4 m cable length provides flexible installation over longer machine distances.
Connector and Cable Design

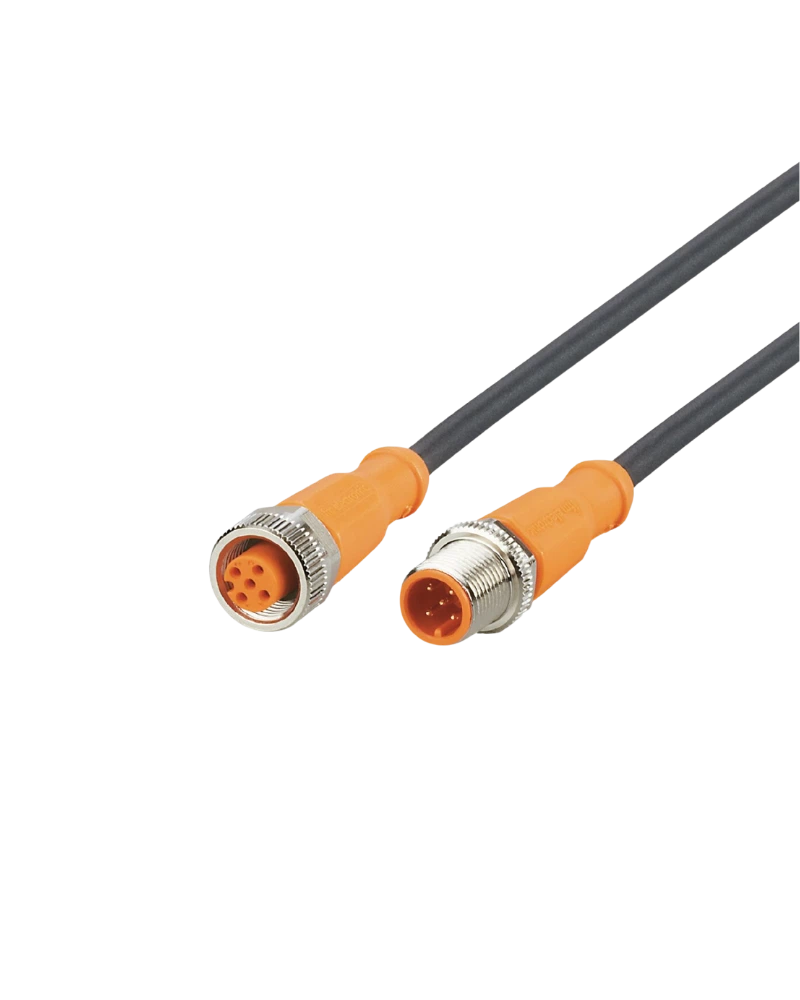

The cable features straight M12 plug and socket connectors with A-coded contacts. Its 3 × 0.34 mm² PUR cable provides reliable electrical transmission and flexible routing.
Industrial Durability
The cable is designed with silicone-free and halogen-free materials. Robust TPU housings, nickel-plated brass nuts and FKM sealing provide dependable protection.
Application Performance
The EVC690 supports AC/DC applications up to 250 V AC or 300 V DC with a 4 A current rating. IP65, IP67, IP68 and IP69K protection supports operation in demanding industrial environments.
Key Features
4 m cable length
M12 straight plug
M12 straight socket
M12 to M12 connection
A-coded connectors
3 × 0.34 mm² PUR cable
Gold-plated contacts
AC/DC electrical design
250 V AC / 300 V DC
4 A current rating
Silicone-free
Halogen-free
FKM sealing
Oil and coolant resistant
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Applications
Industrial automation
Factory automation
Machine control systems
Sensor connections
Actuator connections
Production machinery
Industrial control equipment
Moving machinery
Cable-chain applications
| Specification | Details |
|---|---|
| Product Code | EVC690 |
| Model | VDOGH040MSS0004H04STGH040MSS |
| Product Type | Connection Cable |
| Cable Length | 4 m |
| Connector 1 | M12 Straight Plug |
| Connector 2 | M12 Straight Socket |
| Connection | M12 to M12 |
| Coding | A-coded |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Drag Chain Suitable | Yes |
