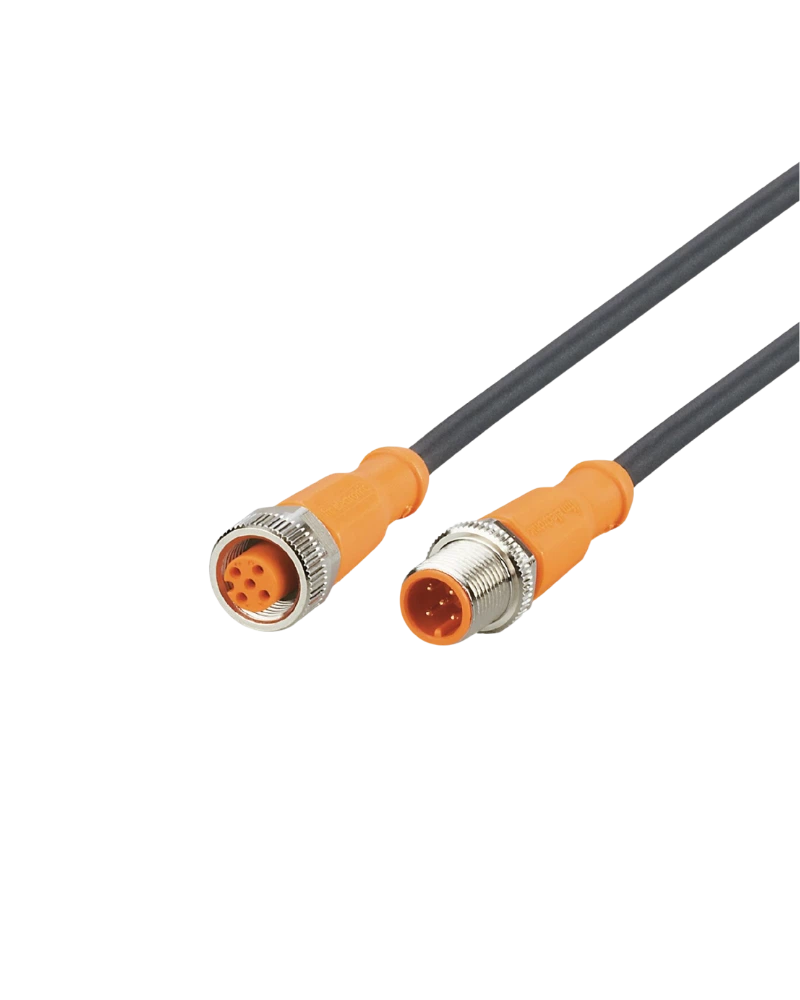

The IFM EVC689 is a 3 m M12 connection cable designed for reliable industrial electrical connections. It uses straight M12 plug and socket connectors with gold-plated contacts. The flexible PUR cable provides dependable signal transmission and mechanical durability. High IP protection and drag-chain suitability make it suitable for demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC689 provides a reliable connection between M12-compatible industrial sensors, actuators and control devices. Its 3 m cable length allows convenient routing across larger machine assemblies.
Connector and Cable Design
The cable uses straight M12 plug and socket connectors with A-coded contacts. The 3 × 0.34 mm² PUR cable provides flexible routing and dependable electrical performance.
Industrial Durability
The cable is silicone-free and halogen-free, with TPU connector housing, nickel-plated brass nuts and FKM sealing. These materials support reliable operation in industrial environments.
Application Performance
The EVC689 supports AC/DC operation up to 250 V AC or 300 V DC with a 4 A current rating. Its IP65, IP67, IP68 and IP69K protection helps protect the connection against dust, moisture and demanding operating conditions.
Key Features
3 m cable length
M12 straight plug
M12 straight socket
M12 to M12 connection
A-coded connectors
3 × 0.34 mm² PUR cable
Gold-plated contacts
AC/DC operation
250 V AC / 300 V DC
4 A current rating
Silicone-free
Halogen-free
FKM sealing
Oil and coolant resistant
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Applications
Industrial automation systems
Factory automation
Sensor connections
Actuator connections
Machine control systems
Production equipment
Industrial control systems
Moving machinery
Automation cabinets and equipment
| Specification | Details |
|---|---|
| Product Code | EVC689 |
| Model | VDOGH040MSS0003H04STGH040MSS |
| Product Type | Connection Cable |
| Cable Length | 3 m |
| Connector 1 | M12 Straight Plug |
| Connector 2 | M12 Straight Socket |
| Connection | M12 to M12 |
| Coding | A-coded |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Drag Chain Suitable | Yes |
