The IFM EVC688 is a 2 m M12 connection cable designed for reliable connections between industrial sensors, actuators and automation equipment.
It features straight M12 plug and socket connectors with A-coded, gold-plated contacts.
The halogen-free PUR cable provides flexibility, durability and dependable signal transmission.
Its IP65, IP67, IP68 and IP69K protection makes it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC688 is an industrial M12 connection cable designed to provide a dependable connection between compatible automation components. Its 2 m cable length provides convenient routing for sensors, actuators, control devices and machine equipment.

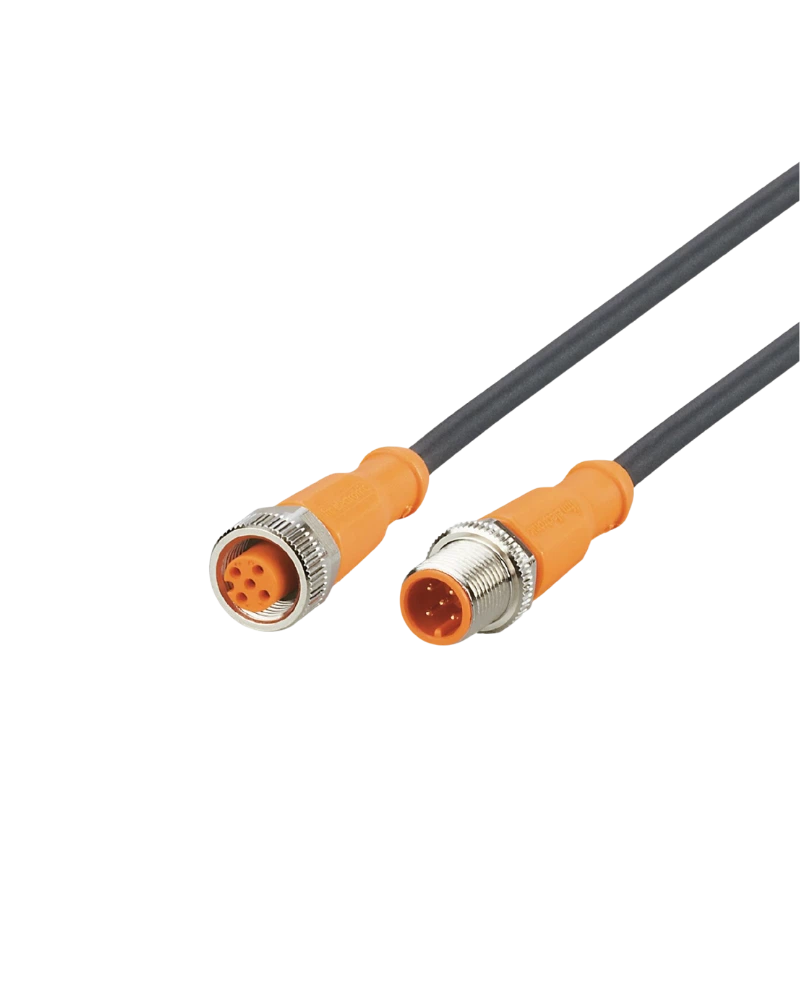

The cable is equipped with a straight M12 plug and a straight M12 socket, both using A-coding and gold-plated contacts. The 4 × 0.34 mm² PUR cable has a 4.3 mm diameter and provides flexible, reliable electrical connectivity.
The EVC688 uses a robust TPU connector body, nickel-plated brass locking components and FKM sealing. The cable is halogen-free and silicone-free, while its construction provides resistance to oil, coolant, vibration and shock in industrial applications.
The connection cable supports less than 250 V AC / 300 V DC and a maximum current rating of 4 A. Its IP65, IP67, IP68 and IP69K protection enables use in demanding environments. It is also suitable for drag-chain applications, with a minimum bending radius of 10 × cable diameter and more than 5 million bending cycles.
2 m cable length
Straight M12 plug
Straight M12 socket
M12 plug-to-socket connection
A-coded connectors
4 × 0.34 mm² cable
PUR cable sheath
4.3 mm cable diameter
Gold-plated contacts
TPU connector body
Nickel-plated brass locking nut
FKM sealing
Halogen-free construction
Silicone-free construction
Oil and coolant resistant
IP65, IP67, IP68 and IP69K protection
Up to 4 A current rating
Suitable for drag-chain applications
More than 5 million bending cycles
Maximum travel speed of 3.3 m/s
Industrial automation systems
Factory automation equipment
Industrial sensors
Actuators and control devices
Machine control systems
Production machinery
Industrial electrical equipment
Automation panels and machinery
Sensor-to-controller connections
Moving machine applications
Cable-chain installations
Harsh industrial environments
| Specification | Details |
|---|---|
| Product Code | EVC688 |
| Model | VDOGH040MSS0002H04STGH040MSS |
| Product Type | Connection Cable / Patchcord |
| Cable Length | 2 m |
| Connector 1 | 1 × M12 Straight Plug |
| Connector 2 | 1 × M12 Straight Socket |
| Connector Coding | A-coded |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | < 250 V AC / < 300 V DC |
| Current Rating | 4 A |
| Connector Body | TPU, Orange |
| Locking Material | Brass, Nickel-plated |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Storage Temperature | -25 to +55 °C |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Maximum Acceleration | 5 m/s² |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.6–1.5 Nm |
| Weight | Approx. 87.2 g |
| Pack Quantity | 1 pc. |
