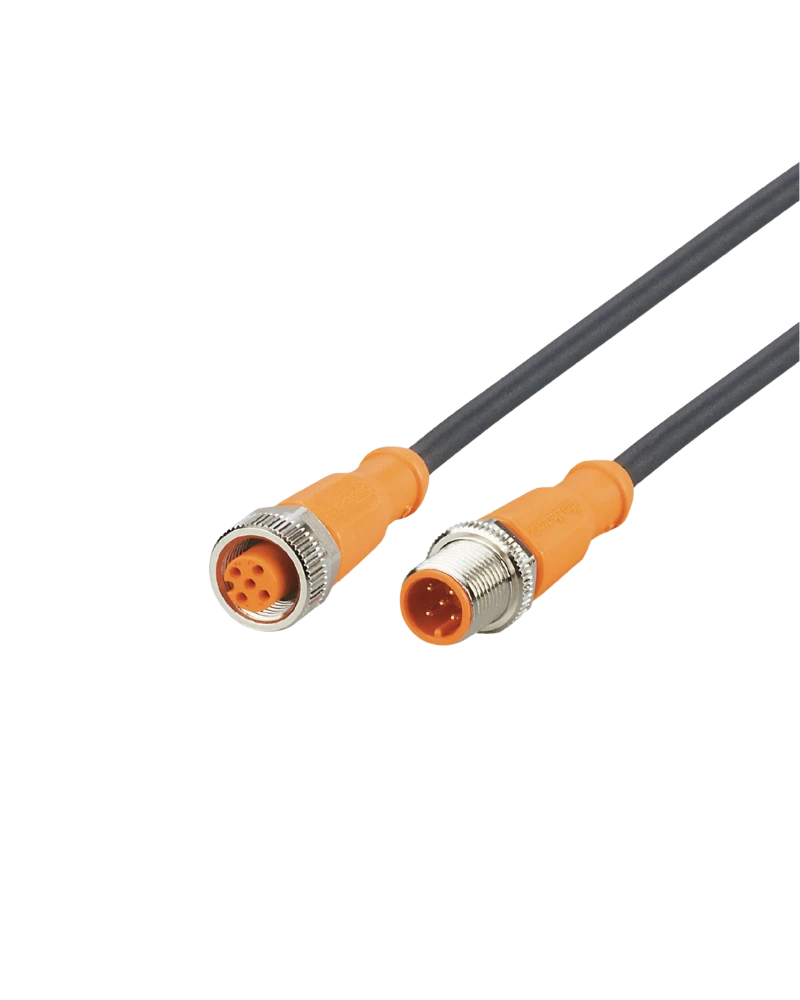

The IFM EVC687 is a 1 m M12 connection cable designed for reliable connections between industrial sensors, actuators and automation devices. It features straight M12 plug and socket connections with gold-plated contacts. The PUR cable provides flexibility, durability and resistance to demanding industrial conditions. Its high IP protection makes it suitable for factory and machine automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC687 provides a reliable electrical connection between compatible M12 industrial components. Its 1 m length offers convenient routing for sensors, actuators and control equipment.
Connector and Cable Design
The cable features a straight M12 plug and straight M12 socket with A-coded, gold-plated contacts. The 3 × 0.34 mm² PUR cable provides dependable signal transmission and flexible installation.
Industrial Durability
The cable is free from silicone and halogens and uses a robust TPU housing with FKM sealing. Nickel-plated brass nuts provide secure mechanical fastening and reliable resistance to industrial conditions.
Application Performance
The EVC687 supports AC/DC operation up to 250 V AC or 300 V DC and a 4 A current rating. IP65, IP67, IP68 and IP69K protection, together with drag-chain suitability and more than 5 million bending cycles, supports reliable use in demanding automation environments.
Key Features
1 m cable length
M12 straight plug
M12 straight socket
M12 to M12 connection
A-coded connectors
3 × 0.34 mm² PUR cable
Gold-plated contacts
AC/DC electrical design
Up to 250 V AC / 300 V DC
4 A current rating
Silicone-free construction
Halogen-free construction
FKM sealing
Oil and coolant resistant
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Applications
Industrial automation systems
Factory automation
Sensor connections
Actuator connections
Machine control systems
Production machinery
Industrial control equipment
Moving machinery
Cable-chain applications
| Specification | Details |
|---|---|
| Product Code | EVC687 |
| Model | VDOGH040MSS0001H04STGH040MSS |
| Product Type | Connection Cable |
| Cable Length | 1 m |
| Connector 1 | M12 Straight Plug |
| Connector 2 | M12 Straight Socket |
| Connection | M12 to M12 |
| Coding | A-coded |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Cable Colour | Black |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Ambient Temperature Moving | -25 to +90 °C |
| Minimum Bending Radius | 10 × Cable Diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Housing Material | TPU |
| Nut Material | Nickel-plated Brass |
| Sealing Material | FKM / Viton |
| Contacts | Gold-plated |
| Drag Chain Suitable | Yes |
| Weight | Approx. 68 g |
