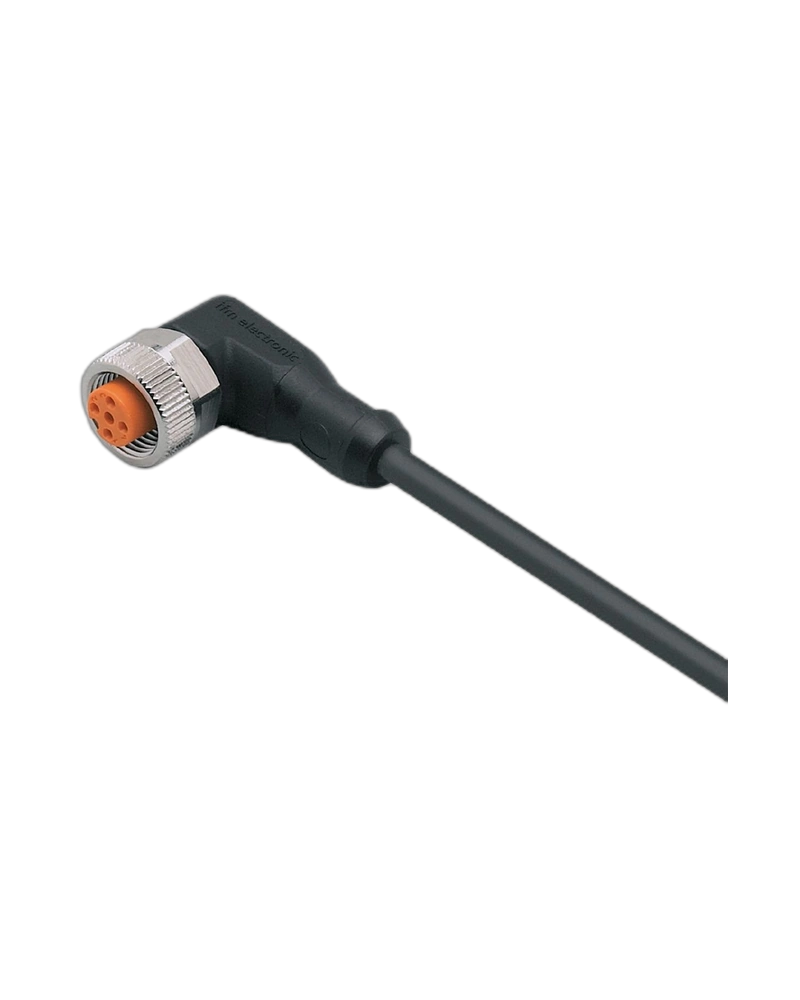

The IFM EVC683 is a 10 m CAN bus connection cable with an integrated 120 Ω terminating resistor. It is designed for reliable CAN bus communication in industrial automation systems. The angled M12 socket and five-conductor PUR cable provide flexible installation and dependable signal transmission. High IP protection and drag-chain suitability support operation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC683 is designed for CAN bus applications where reliable communication between industrial control devices is required. Its integrated terminating resistor helps support proper CAN bus signal termination.
CAN Bus Connection
The cable features an M12 socket with an integrated 120 Ω CAN terminating resistor. It uses a five-conductor PUR cable and supports CAN bus electrical communication.
Durable Construction
The 10 m cable is halogen-free and uses a black PUR sheath with a 4.9 mm diameter. The angled TPU housing, nickel-plated brass nut and Viton sealing provide reliable industrial protection.
Application Performance
The EVC683 supports 32 V DC for wires 1–3 and 5 V DC for wires 4–5. It provides IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications with more than 5 million bending cycles.
Key Features
10 m PUR cable
CAN bus connection
M12 socket
Integrated 120 Ω terminating resistor
Angled connector design
5-conductor cable
5 × 0.34 mm² cable
32 V DC supply for wires 1–3
5 V DC supply for wires 4–5
Gold-plated contacts
Halogen-free cable
Silicone-free construction
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Applications
CAN bus communication
Industrial automation networks
Machine control systems
Factory automation
CAN-based control equipment
Industrial controllers
Automation modules
Mobile and moving machinery
Industrial communication systems
| Specification | Details |
|---|---|
| Product Code | EVC683 |
| Model | ADOAH050MSA0010H05 |
| Product Type | CAN bus connection cable |
| Cable Length | 10 m |
| Connector | M12 socket |
| Connector Design | Angled |
| Number of Contacts | 5 |
| Electrical Design | CAN bus |
| Integrated Terminating Resistor | 120 Ω |
| Operating Voltage | 32 V DC / 5 V DC |
| Current Rating | 4 A for wires 1–3; 0.05 A for wires 4–5 |
| Cable Material | PUR |
| Cable Cross Section | 5 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Cable Colour | Black |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Sealing Material | Viton |
| Contacts | Gold-plated |
| Cable Chain Suitable | Yes |
| Weight | 355 g |
