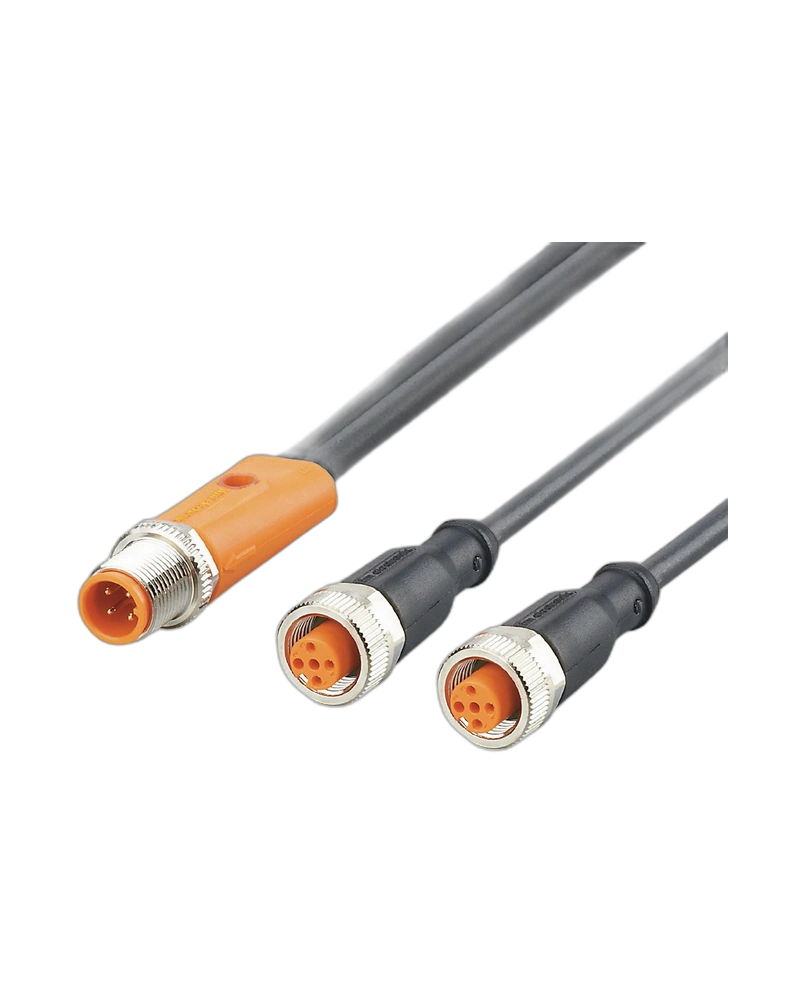

The IFM EVC682 is a compact Y connection cable designed to simplify sensor and actuator wiring in industrial automation systems. It uses a 0.3 m PUR cable and M12 connections with gold-plated contacts. The PNP electrical design supports compatible 10–36 V DC automation devices. High IP protection and drag-chain suitability provide reliable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC682 provides a practical Y-shaped connection solution for combining and distributing industrial automation signals. Its compact design helps simplify wiring arrangements around sensors and actuators.
Y-Connection Design
The cable uses M12 connections and provides a compact branching arrangement. Gold-plated contacts and a robust PUR cable help maintain reliable electrical signal transmission.
Industrial Durability
The EVC682 is halogen-free and silicone-free. TPU connector bodies, nickel-plated brass locking components and FKM sealing provide dependable protection for industrial applications.
Application Performance
The cable supports 10–36 V DC operation and a 4 A maximum current load. IP65, IP67, IP68 and IP69K protection, together with drag-chain suitability and more than 5 million bending cycles, support demanding automation applications.
Key Features
0.3 m PUR cable
Y connection configuration
M12 connection technology
PNP electrical design
10–36 V DC operating voltage
4 A maximum current
3 × 0.34 mm² cable
Gold-plated contacts
Halogen-free construction
Silicone-free design
FKM sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Yellow and green LED indication
Applications
Industrial automation
Sensor signal distribution
Actuator connections
Factory automation
Machine control systems
Production machinery
Automation wiring
Sensor and actuator networks
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EVC682 |
| Model | YDOGH034MSS00,3H03STGH040MSS |
| Product Type | Y Connection cable |
| Cable Length | 0.3 m |
| Connector Type | M12 |
| Connection Type | Y connection |
| Electrical Design | PNP |
| Operating Voltage | 10–36 V DC |
| Maximum Current | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Cable Chain Suitable | Yes |
| Weight | 69 g |
