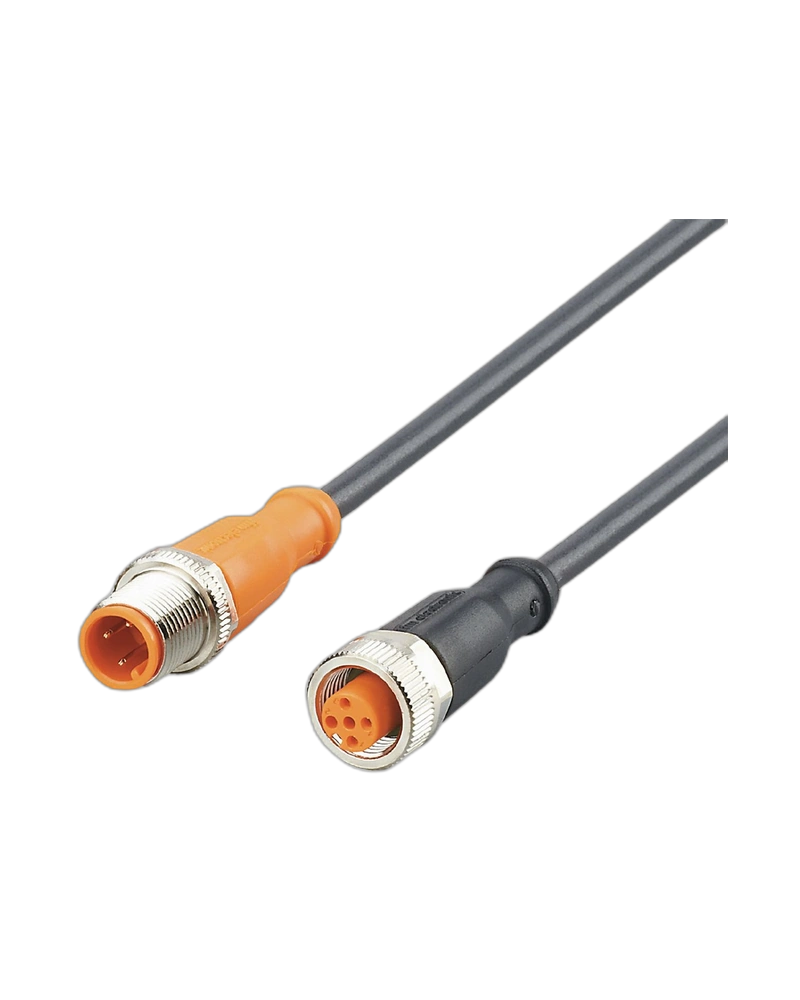

The IFM EVC681 is a compact 0.3 m M12 connection cable designed for reliable industrial automation connections. It features straight M12 connectors, four contacts and a flexible PUR cable. Gold-plated contacts and FKM sealing support reliable electrical and mechanical performance. Its high IP protection and drag-chain suitability make it suitable for demanding machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC681 provides a reliable M12-to-M12 connection for industrial sensors, actuators and automation equipment. Its short length is ideal for compact machine installations.
Connector and Cable Design
The cable uses straight M12 connectors with A-coded configuration. The 4 × 0.34 mm² PUR cable supports dependable signal transmission and flexible installation.
Durable Industrial Construction
Gold-plated contacts, TPU connector housings, nickel-plated brass locking nuts and FKM sealing provide reliable operation in industrial conditions.
Application Performance
The EVC681 is designed for demanding factory automation environments. Its high IP protection and drag-chain suitability support applications involving moisture, oils, coolants, vibration and repeated movement.
Key Features
0.3 m cable length
M12 straight plug
M12 straight socket
M12 to M12 connection
4-pin configuration
A-coded design
4 × 0.34 mm² PUR cable
Gold-plated contacts
Halogen-free construction
Silicone-free design
Oil and coolant resistant
FKM sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Applications
Industrial automation
Factory automation
M12 sensor connections
Actuator connections
Machine control systems
Production machinery
Moving automation equipment
Cable-chain installations
Industrial control equipment
| Specification | Details |
|---|---|
| Product Code | EVC681 |
| Model | VDOGH046MSS00,3H04STGH040MSS |
| Product Type | Connection cable |
| Cable Length | 0.3 m |
| Connector 1 | M12 straight plug |
| Connector 2 | M12 straight socket |
| Connection | M12 to M12 |
| Number of Contacts | 4 |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Cable Chain Suitable | Yes |
