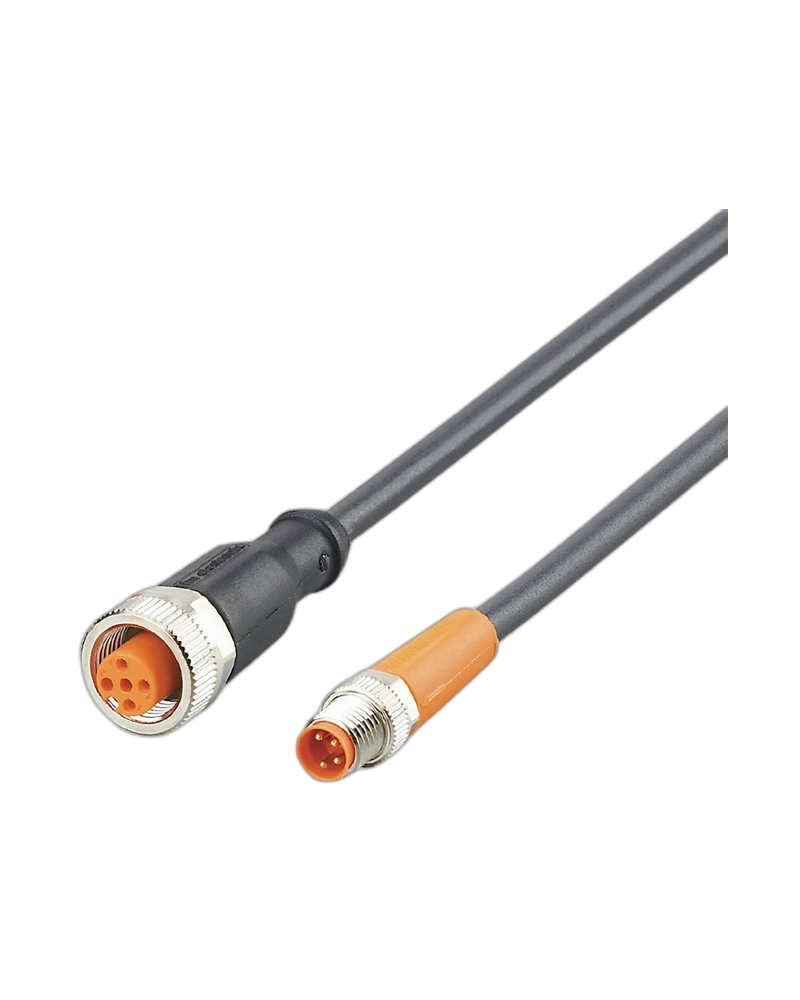

The IFM EVC680 is a compact 0.3 m connection cable designed for reliable industrial automation connections. It provides an M12-to-M8 interface with a straight M12 plug and M8 socket. The 4-conductor PUR cable offers dependable signal transmission and mechanical flexibility. Its robust construction and high environmental protection make it suitable for demanding machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC680 is designed to connect compatible M12 and M8 components in industrial automation systems. Its compact length helps simplify wiring in space-limited installations.
Connector and Cable Design
The cable combines a straight M12 plug with an M8 socket. The 4 × 0.34 mm² PUR cable provides flexible routing and reliable electrical connectivity.
Industrial Durability
The cable uses durable connector housings, gold-plated contacts and FKM sealing. Its halogen-free and silicone-free construction supports use in industrial environments.
Application Performance
The EVC680 is suitable for machine automation, sensors, actuators and moving equipment. High IP protection and drag-chain suitability support dependable operation under demanding conditions.
Key Features
0.3 m cable length
M12 straight plug
M8 straight socket
M12 to M8 connection
4-pin configuration
A-coded connectors
4 × 0.34 mm² PUR cable
Gold-plated contacts
Halogen-free
Silicone-free
Oil and coolant resistant
FKM sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
High mechanical durability
Applications
Industrial automation systems
Factory automation
M12 to M8 sensor connections
Machine control
Sensor and actuator connections
Production equipment
Moving machinery
Compact machine installations
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC680 |
| Model | VDOGH046MSS00,3H04STGF040MSS |
| Product Type | Connection cable |
| Cable Length | 0.3 m |
| Connector 1 | M12 straight plug |
| Connector 2 | M8 straight socket |
| Connection | M12 to M8 |
| Number of Contacts | 4 |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Cable Chain Suitable | Yes |
