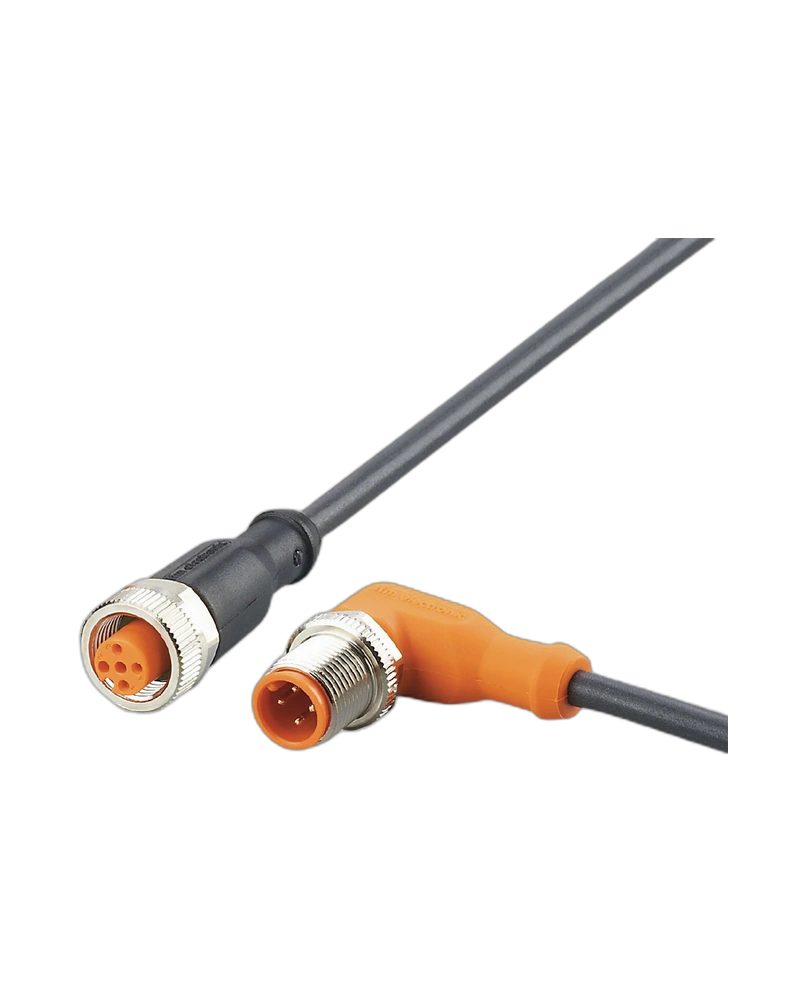

The IFM EVC679 is a compact 0.3 m M12 connection cable designed for industrial automation systems. It features an angled M12 plug and straight M12 socket with four contacts. The PUR cable, gold-plated contacts and FKM sealing provide reliable operation in demanding environments. Its PNP design, LED indication and high IP protection make it suitable for sensor and actuator connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC679 provides a dependable M12-to-M12 connection for industrial sensors, actuators and automation equipment. Its compact design is suitable for installations requiring short cable lengths.
Connector and Electrical Design
The cable uses an angled M12 plug and straight M12 socket with A-coded connections. It has a DC PNP electrical design and operates from 10–36 V DC with a 4 A current rating.
Durability and Protection
The PUR cable is halogen-free and silicone-free. TPU housings, nickel-plated brass nuts, FKM sealing and gold-plated contacts provide reliable mechanical and electrical performance.
Application Performance
The EVC679 provides IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications. It supports more than 5 million bending cycles and includes yellow output-status and green power LEDs.
Key Features
0.3 m cable length
M12 angled plug
M12 straight socket
M12 to M12 connection
4-pin configuration
A-coded design
DC PNP electrical design
10–36 V DC operation
4 A current rating
4 × 0.34 mm² PUR cable
Gold-plated contacts
2 × yellow status LEDs
2 × green power LEDs
Halogen-free construction
Silicone-free design
FKM sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
Applications
Industrial automation
Factory automation
M12 sensor connections
PNP sensor systems
Machine control systems
Production machinery
Sensor and actuator interfaces
Moving machine applications
Industrial control equipment
| Specification | Details |
|---|---|
| Product Code | EVC679 |
| Model | VDOGH046MSS00,3H04STAH040MSS |
| Product Type | Connection cable |
| Cable Length | 0.3 m |
| Connector 1 | M12 angled plug |
| Connector 2 | M12 straight socket |
| Connection | M12 to M12 |
| Coding | A-coded |
| Number of Contacts | 4 |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Output Status Indication | 4 × yellow LED |
| Power Indication | 2 × green LED |
| Cable Chain Suitable | Yes |
| Weight | 45 g |
