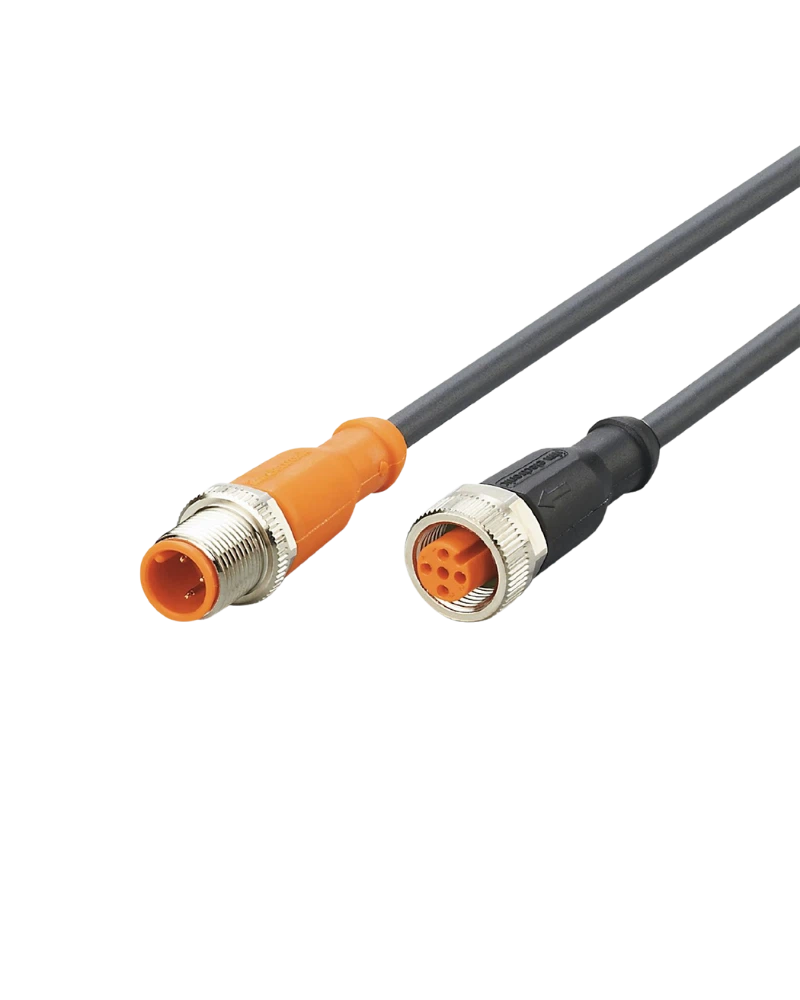

The IFM EVC677 is a compact 0.3 m connection cable designed for reliable M12-to-M12 industrial connections. It features straight connectors, a flexible PUR cable and gold-plated contacts. The cable is designed to withstand demanding industrial operating conditions. Its high protection rating and drag-chain suitability make it suitable for automation and machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC677 provides a reliable connection between M12-compatible sensors, actuators and industrial control equipment. Its compact design is ideal for short connection distances.
Connector and Cable Design
The cable uses straight M12 connectors with A-coded contacts. The 3 × 0.34 mm² PUR cable provides flexible routing and dependable signal transmission.
Industrial Construction
The cable is manufactured with durable connector materials and gold-plated contacts. Its silicone-free and halogen-free construction supports use in demanding industrial environments.
Application Performance
The EVC677 is suitable for fixed and moving automation applications. Its high IP protection and drag-chain suitability help maintain reliable performance where moisture, oils, vibration and repeated movement are present.
Key Features
0.3 m cable length
M12 straight plug
M12 straight socket
M12 to M12 connection
A-coded connectors
3 × 0.34 mm² PUR cable
Gold-plated contacts
Halogen-free
Silicone-free
Oil and coolant resistant
FKM sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
High mechanical durability
Applications
Industrial automation systems
Factory automation
M12 sensor connections
Actuator connections
Machine control systems
Production machinery
Moving automation equipment
Cable-chain applications
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC677 |
| Model | VDOGH034MSS00,3H03STGH030MSS |
| Product Type | Connection cable |
| Cable Length | 0.3 m |
| Connector 1 | M12 straight plug |
| Connector 2 | M12 straight socket |
| Connection | M12 to M12 |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Operating Voltage | 10–36 V DC |
| Maximum Current | 4 A |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Cable Chain Suitable | Yes |
