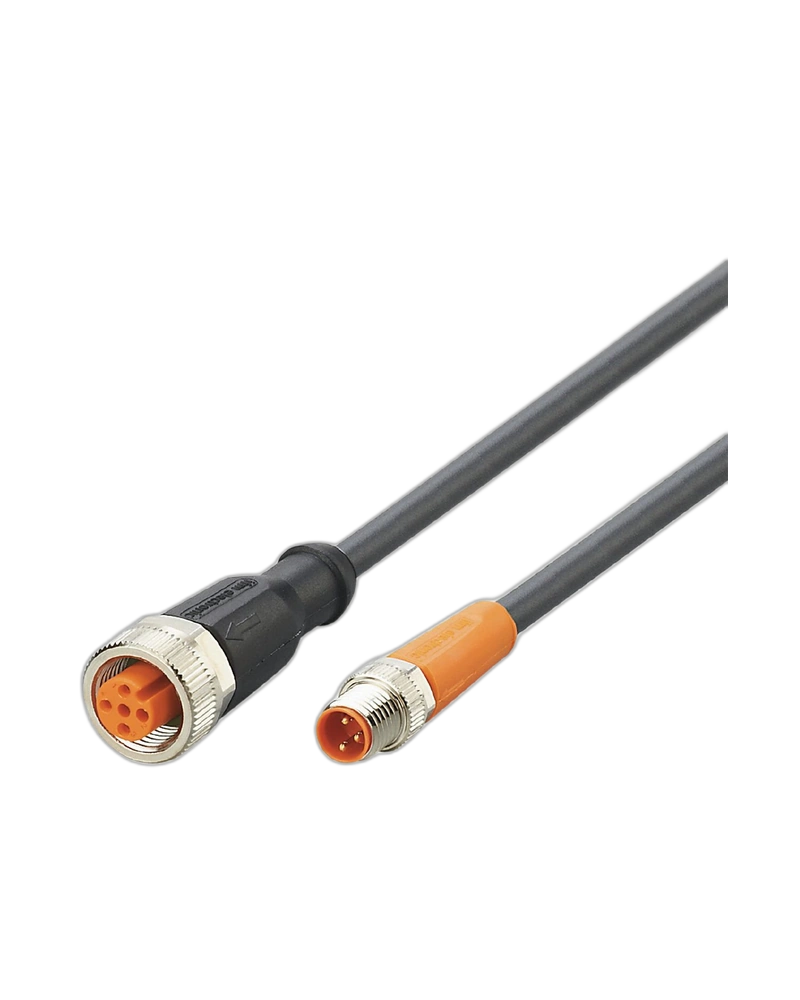

The IFM EVC676 is a compact 0.3 m connection cable designed for industrial sensor and actuator connections. It combines an M12 connector with an M8 connection for interfacing different connector sizes. The PUR cable and gold-plated contacts provide dependable electrical performance. Its robust construction and high protection rating support reliable use in factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC676 provides a practical connection solution between compatible M12 and M8 automation components. Its short cable length helps simplify compact machine wiring.
Connector and Cable Design
The cable uses a 3 × 0.34 mm² PUR cable with A-coded connectors. The combination of M12 and M8 interfaces provides flexibility when connecting sensors and automation devices with different connector formats.
Durable Construction
The EVC676 uses robust TPU connector housings, nickel-plated brass locking components and FKM sealing. Gold-plated contacts provide dependable electrical connections.
Application Performance
The cable is designed for industrial environments and supports high IP protection. Its flexible construction and drag-chain suitability make it appropriate for moving machinery and automated production equipment.
Key Features
0.3 m compact cable
M12 straight plug
M8 straight socket
M12 to M8 connection
A-coded connectors
3 × 0.34 mm² PUR cable
Gold-plated contacts
Halogen-free construction
Silicone-free design
Oil and coolant resistant
FKM sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
High mechanical durability
Applications
Industrial automation
Factory automation
M8 and M12 sensor connections
Sensor and actuator interfaces
Machine control systems
Production machinery
Automation equipment
Moving machine applications
Compact machine installations
| Specification | Details |
|---|---|
| Product Code | EVC676 |
| Model | VDOGH034MSS00,3H03STGF030MSS |
| Product Type | Connection cable |
| Cable Length | 0.3 m |
| Connector 1 | M12 straight plug |
| Connector 2 | M8 straight socket |
| Connection | M12 to M8 |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Operating Voltage | 10–36 V DC |
| Maximum Current | 4 A |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Protection Class | II |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Cable Chain Suitable | Yes |
