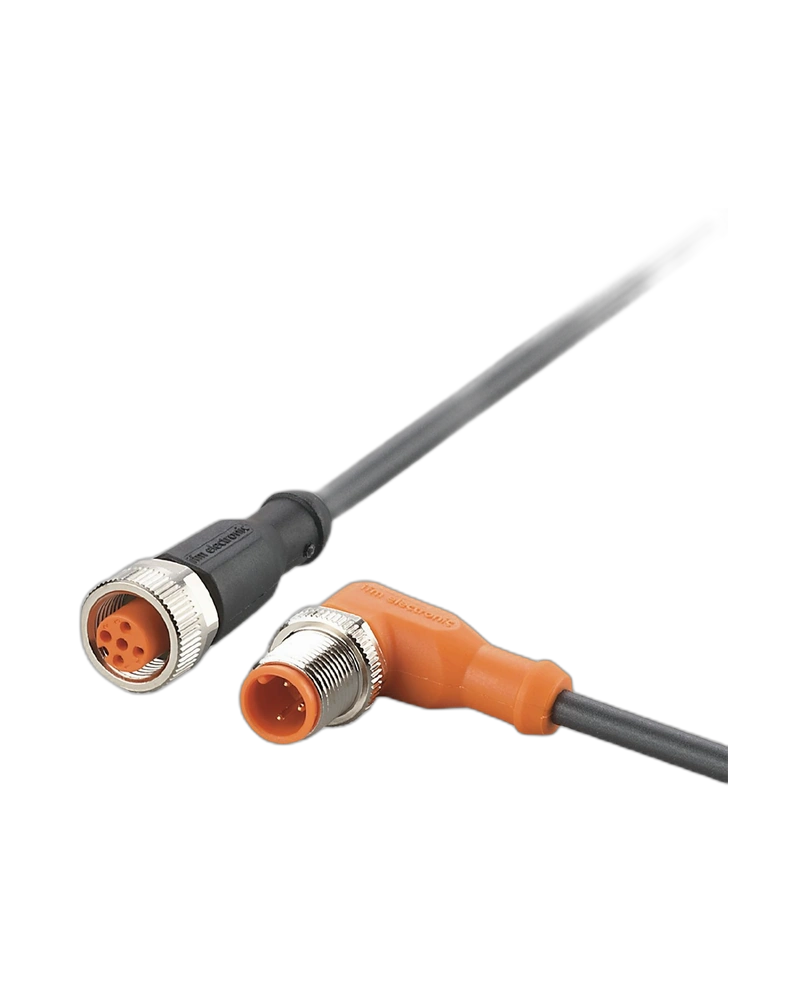

The IFM EVC675 is a compact 0.3 m connection cable designed for reliable M12 sensor and actuator connections. It features an angled M12 plug and straight M12 socket with gold-plated contacts. The PUR cable provides flexibility and durability in demanding industrial environments. High IP protection and drag-chain suitability support reliable machine automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC675 is designed for dependable electrical connections between industrial sensors, actuators and automation equipment. Its compact length makes it suitable for installations where short and flexible connections are required.
Connector and Cable Design
The cable features an angled M12 plug and straight M12 socket with A-coded connections. Its 3 × 0.34 mm² PUR cable provides reliable signal transmission, while gold-plated contacts support long-term electrical performance.
Industrial Durability
The EVC675 is silicone-free and halogen-free, with TPU connector bodies, nickel-plated brass nuts and FKM sealing. The construction provides resistance to oils, coolants, vibration and shock.
Application Performance
The cable operates at 10–36 V DC and supports a maximum total load current of 4 A. IP65, IP67, IP68 and IP69K protection, together with drag-chain suitability and more than 5 million bending cycles, makes it suitable for demanding industrial applications.
Key Features
0.3 m cable length
M12 angled plug
M12 straight socket
M12 to M12 connection
A-coded design
3 × 0.34 mm² PUR cable
Gold-plated contacts
PNP electrical design
10–36 V DC operating voltage
4 A maximum total load current
Halogen-free construction
Silicone-free design
Oil and coolant resistant
FKM sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
LED status indication
Applications
Industrial automation systems
Factory automation equipment
Sensor and actuator connections
Machine control systems
Production machinery
Moving machine installations
Industrial control equipment
Cable-chain applications
Oil and coolant exposed machinery
| Specification | Details |
|---|---|
| Product Code | EVC675 |
| Model | VDOGH034MSS00,3H03STAH030MSS |
| Product Type | Connection cable |
| Cable Length | 0.3 m |
| Connector 1 | M12 angled plug |
| Connector 2 | M12 straight socket |
| Connection | M12 to M12 |
| Coding | A-coded |
| Electrical Design | PNP |
| Operating Voltage | 10–36 V DC |
| Maximum Current | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s |
| Bending Cycles | > 5 million |
| Torsional Strain | ±180°/m |
| Connector Housing | TPU |
| Nut Material | Nickel-plated brass |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Status Indication | 2 × yellow LED |
| Operating Indication | 2 × green LED |
| Cable Chain Suitable | Yes |
| Weight | 42.2 g |
