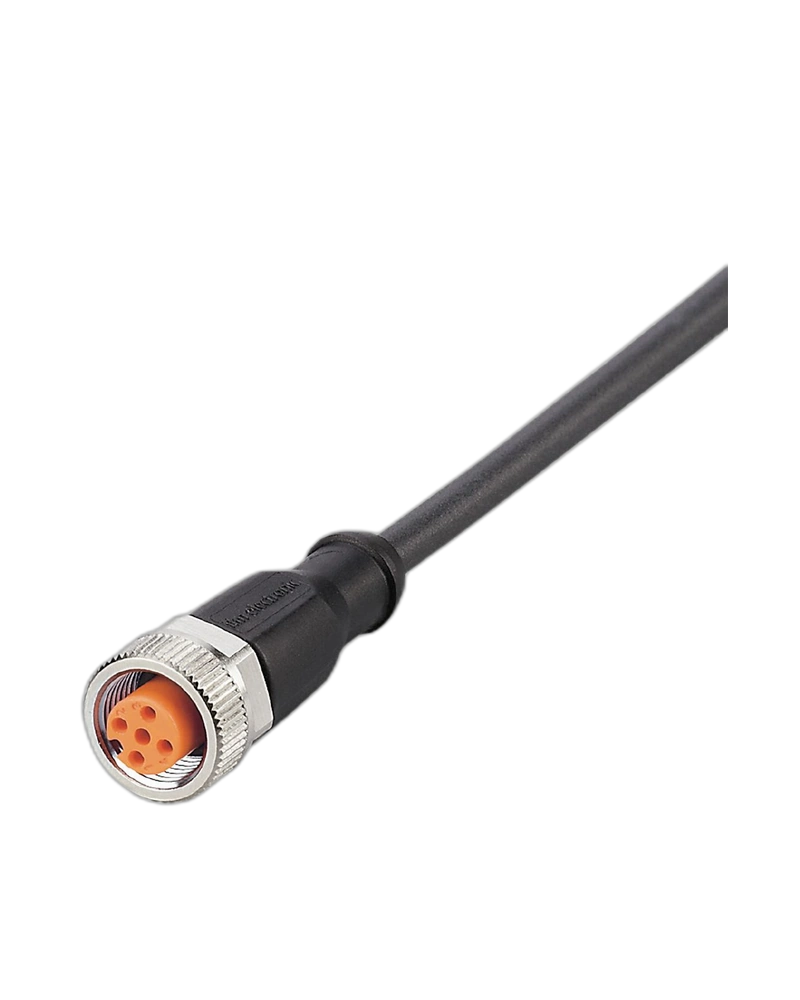

The IFM EVC645 is a 5 m M12 connecting cable designed for reliable industrial sensor connections. Its DC PNP design supports 10–36 V DC operation and provides a dependable interface for compatible automation equipment. The PUR cable and gold-plated contacts offer durability and reliable signal transmission. High IP protection makes it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC645 is designed for industrial sensors and automation equipment using M12 connections. Its 5 m length provides flexible cable routing across machinery and production systems.
PNP Connection Design
The product uses a straight M12 socket and DC PNP electrical design. Its 4-pin connection supports compatible industrial sensors operating from 10–36 V DC.
Robust Industrial Construction
The cable uses PUR material with a TPU connector housing, FKM sealing and nickel-plated brass locking nut. Gold-plated contacts provide reliable electrical connectivity.
Application Performance
The EVC645 offers IP65, IP67, IP68 and IP69K protection. It is suitable for drag-chain applications and repeated mechanical movement in factory automation environments.
Key Features
5 m PUR cable
M12 straight socket
4-pin connection
DC PNP design
10–36 V DC operating voltage
4 × 0.34 mm² cable
Gold-plated contacts
Halogen-free cable
Silicone-free construction
FKM sealing
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
Applications
Industrial automation
Factory automation
M12 sensor connections
Machine control systems
Production machinery
Control equipment
Sensor signal transmission
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EVC645 |
| Model | ADOGH046MSS0005H04 |
| Product Type | Connecting cable with socket |
| Cable Length | 5 m |
| Connector | M12 straight socket |
| Number of Contacts | 4 |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | > 5 million |
| Contacts | Gold-plated |
| Sealing | FKM |
