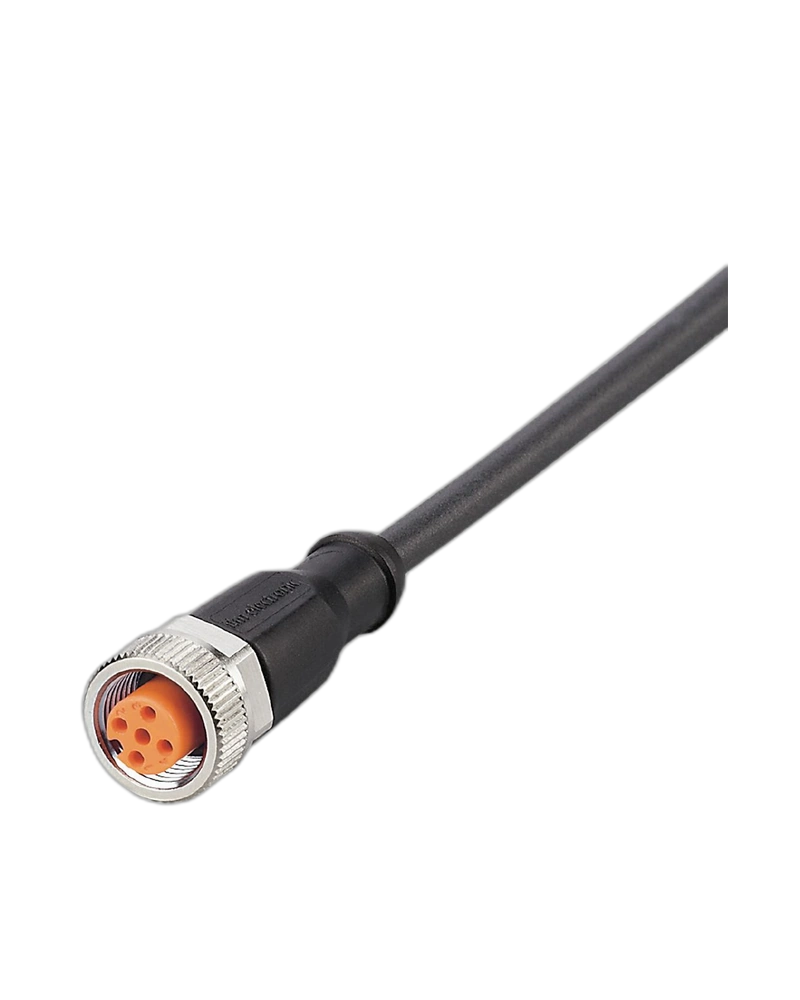

The IFM EVC644 is a 2 m M12 connecting cable with a straight socket designed for industrial sensor and actuator connections. It features a 4-conductor PUR cable and gold-plated contacts for dependable electrical performance. The PNP design supports compatible industrial automation equipment. High IP protection and drag-chain suitability make it suitable for demanding machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC644 provides a reliable connection solution for sensors with M12 interfaces. Its compact 2 m cable length is suitable for machine automation and factory equipment.
PNP Connection Technology
The cable is designed for DC PNP applications and supports 10–36 V DC operation. The straight M12 socket provides a secure connection for compatible industrial sensors.
Durable Construction
The cable uses PUR insulation, a TPU connector body, FKM sealing and a nickel-plated brass locking nut. Gold-plated contacts help provide reliable signal transmission.
Application Performance
The EVC644 provides IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications. LED indicators provide clear status and operating indication.
Key Features
2 m PUR cable
M12 straight socket
4-pin connection
DC PNP electrical design
10–36 V DC operation
4 × 0.34 mm² cable
Gold-plated contacts
Halogen-free construction
Silicone-free design
IP65, IP67, IP68 and IP69K protection
LED status indication
Drag-chain suitable
Applications
Industrial sensors
Factory automation
Machine control
Automation panels
Production machinery
Sensor signal transmission
Industrial control systems
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EVC644 |
| Model | ADOGH046MSS0002H04 |
| Product Type | Connecting cable with socket |
| Cable Length | 2 m |
| Connector | M12 straight socket |
| Number of Contacts | 4 |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Cable Diameter | Approx. 4.9 mm |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | > 5 million |
| Contacts | Gold-plated |
| Sealing | FKM |
