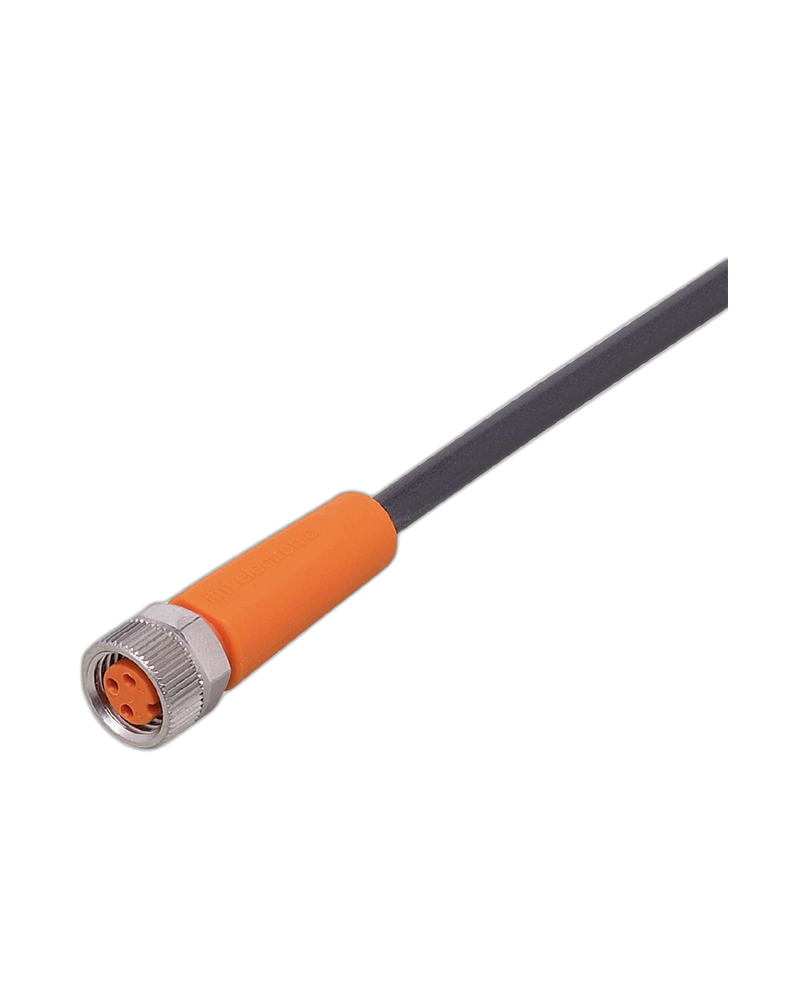

The IFM EVC643 is a 14 m connecting cable with an M8 straight socket for industrial sensor applications. It features a flexible PUR cable with three conductors and gold-plated contacts. The cable is designed for reliable operation in demanding industrial automation environments. Its high protection rating and drag-chain suitability provide additional installation flexibility.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC643 provides a dependable connection between M8 sensors and industrial control equipment. Its extended 14 m cable length is useful for installations requiring longer cable routing.
Connector and Cable Construction
The cable features a straight M8 socket with A-coded configuration and a 3 × 0.25 mm² PUR cable. Gold-plated contacts support reliable signal transmission.
Environmental Protection
The EVC643 uses a TPU connector body, FKM sealing and nickel-plated brass locking nut. It is halogen-free, silicone-free and suitable for industrial environments involving oils and coolants.
Application Performance
The cable provides IP65, IP67, IP68 and IP69K protection and supports drag-chain operation. It can withstand more than 5 million bending cycles and travel speeds up to 3.3 m/s.
Key Features
14 m cable length
M8 straight socket
3-pin connection
A-coded design
3 × 0.25 mm² PUR cable
Gold-plated contacts
Halogen-free construction
Silicone-free design
FKM sealing
Oil and coolant resistant
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
Applications
Industrial sensors
Factory automation
Machine automation
Sensor signal transmission
Industrial control systems
Production equipment
Moving machinery
Long-distance sensor connections
| Specification | Details |
|---|---|
| Product Code | EVC643 |
| Model | ADOGF030MSS0014H03 |
| Product Type | Connecting cable with socket |
| Cable Length | 14 m |
| Connector | M8 straight socket |
| Number of Contacts | 3 |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.25 mm² |
| Operating Voltage | < 50 V AC / < 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | > 5 million |
| Sealing Material | FKM |
| Contacts | Gold-plated |
