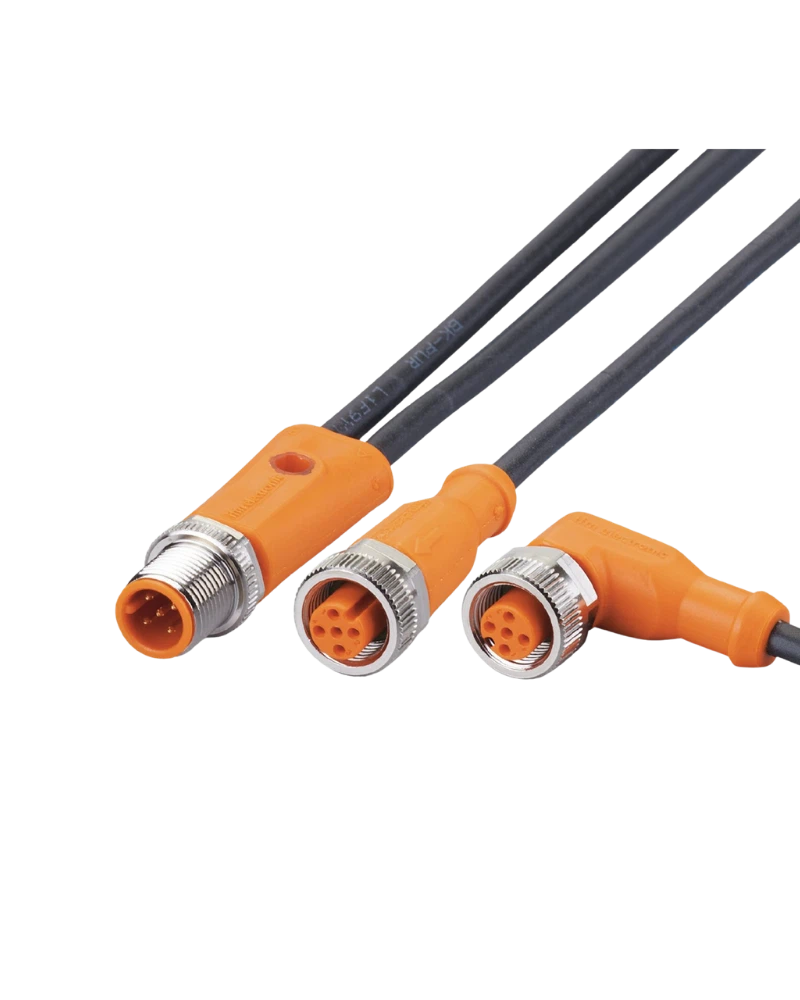

The IFM EVC642 is a compact 0.1 m Y connection cable designed for branching M12 connections in industrial automation systems. It provides a practical multi-connection solution using five-contact M12 interfaces. The robust PUR cable and high IP protection support reliable use in demanding environments. Its compact design is suitable for sensor and actuator distribution applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EVC642 Y connection cable is designed to simplify the connection of multiple M12 devices within industrial automation systems. Its compact construction helps reduce wiring complexity while maintaining reliable electrical connectivity.
Y-Connection Design
The cable provides a central branching arrangement with M12 connections and five contacts. The 0.1 m PUR cable offers a compact solution where multiple sensor or actuator connections need to be combined.
Durable Construction
The cable uses TPU connection bodies, FKM sealing and nickel-plated brass locking components. Gold-plated contacts provide reliable electrical performance.
Application Performance
The EVC642 is suitable for harsh industrial environments and offers IP65, IP67, IP68 and IP69K protection. It is also suitable for drag-chain applications and supports more than 5 million bending cycles.
Key Features
0.1 m compact cable
Y connection configuration
M12 five-contact connections
PUR cable
Gold-plated contacts
Halogen-free construction
Silicone-free construction
FKM sealing
IP65, IP67, IP68 and IP69K protection
Oil and coolant resistant
Drag-chain suitable
High mechanical durability
Applications
Industrial automation
Sensor distribution
Actuator connections
Machine control systems
Factory automation
Control cabinet wiring
Industrial networking
Compact machine installations
| Specification | Details |
|---|---|
| Product Code | EVC642 |
| Model | YDOXH050MSS00,1H05STGH050MSS |
| Product Type | Y connection cable |
| Cable Length | 0.1 m |
| Connector Type | M12 |
| Number of Contacts | 5 |
| Connection Type | Y connection |
| Cable Material | PUR |
| Cable Cross Section | 5 × 0.34 mm² |
| Operating Voltage | < 60 V AC/DC |
| Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | > 5 million |
| Sealing Material | FKM |
| Contacts | Gold-plated |
