The IFM EVC632 is a 7 m connection cable designed for reliable connections between M12 and M8 industrial automation components. It features a straight M12 plug and angled M8 socket with gold-plated contacts. The PUR cable provides flexibility, durability and resistance to demanding industrial conditions. Its high IP protection and drag-chain suitability make it suitable for machine and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC632 connection cable provides a reliable interface between industrial sensors, actuators and automation equipment using M12 and M8 connections. Its robust construction supports dependable signal transmission in industrial environments.
Connector and Cable Design

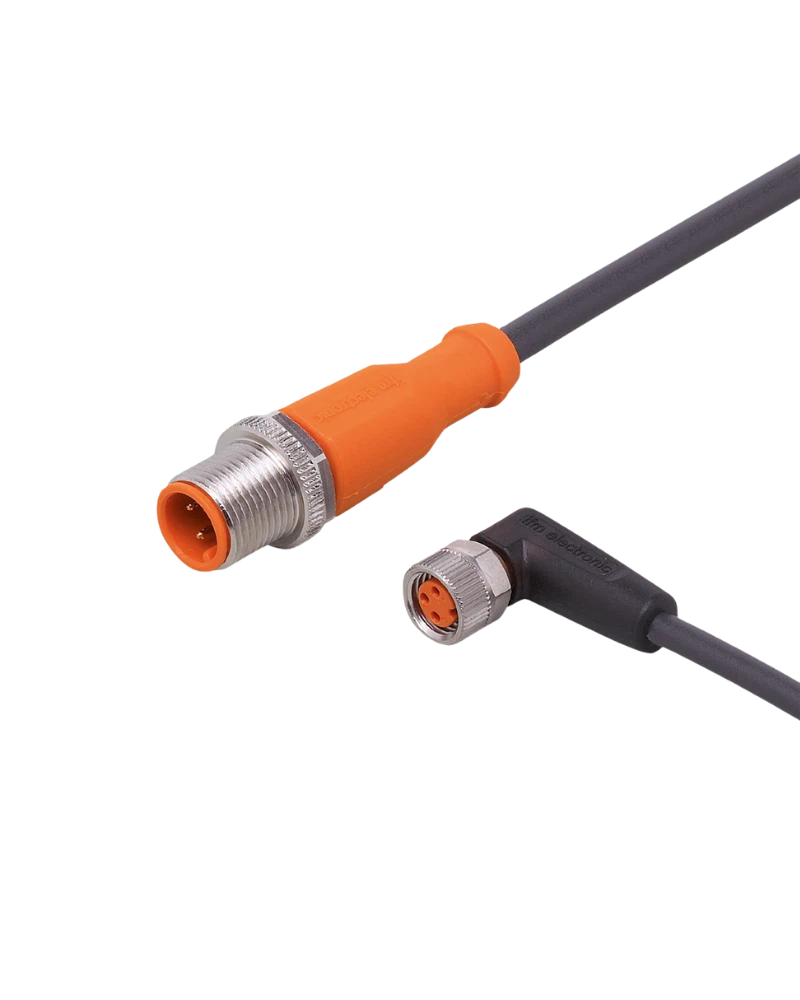

The cable features a straight M12 plug and angled M8 socket with A-coded connections. The 7 m PUR cable uses a 3 × 0.34 mm² construction and gold-plated contacts for reliable electrical connectivity.
Industrial Durability
The cable is halogen-free, silicone-free and designed for resistance to oils and coolants. TPU connector housings, FKM sealing and nickel-plated brass locking nuts provide reliable mechanical and environmental protection.
Application Performance
The EVC632 provides IP65, IP67, IP68 and IP69K protection and supports drag-chain applications. It can withstand more than 5 million bending cycles and travel speeds up to 3.3 m/s.
Key Features
7 m PUR connection cable
M12 straight plug
M8 angled socket
M12 to M8 connection
A-coded connectors
3 × 0.34 mm² cable
Gold-plated contacts
Halogen-free and silicone-free construction
Oil and coolant resistant
IP65, IP67, IP68 and IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Applications
Industrial automation systems
Factory automation
Sensor and actuator connections
Machine control systems
Industrial machinery
Robotic and moving equipment
Drag-chain installations
Oil and coolant exposed environments
| Specification | Details |
|---|---|
| Product Code | EVC632 |
| Model | VDOAF032MSS0007H03STGH030MSS |
| Product Type | Connection cable |
| Cable Length | 7 m |
| Connector 1 | M12 straight plug |
| Connector 2 | M8 angled socket |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Cross Section | 3 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to +90 °C |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | > 5 million |
| Sealing | FKM |
| Contacts | Gold-plated |
