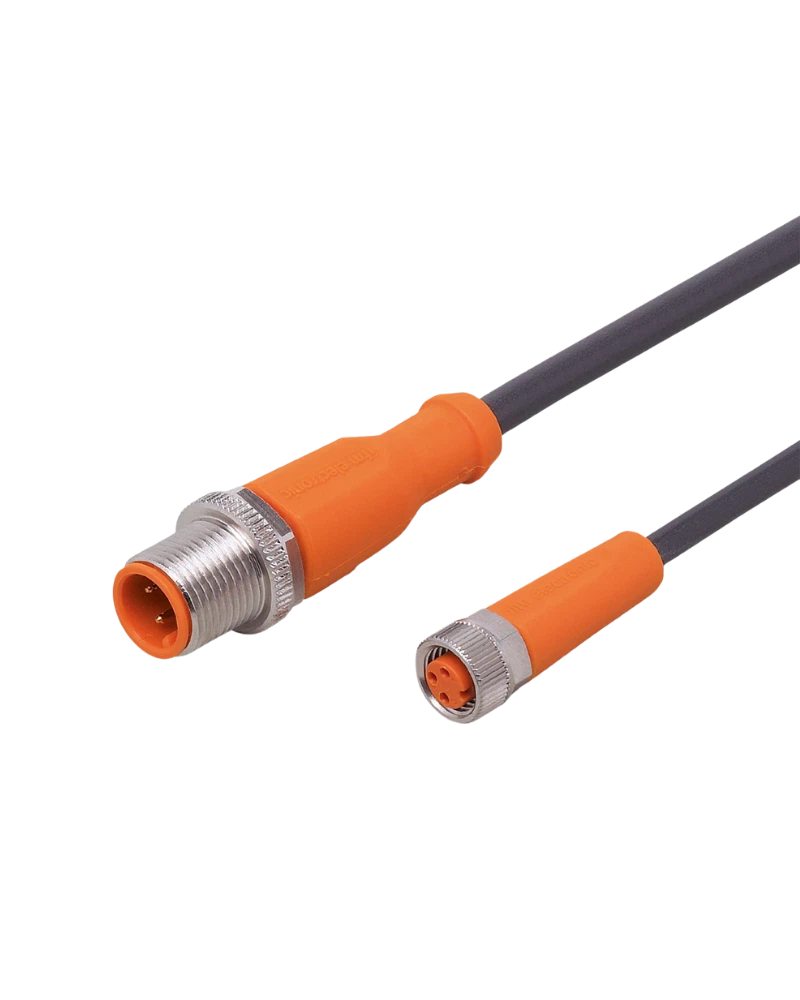

The IFM EVC630 is a 3 m connection cable combining an M12 plug and M8 socket for reliable industrial sensor connectivity. Its 3-core PUR construction is designed for compact automation systems and moving applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 to M8 Connection
The EVC630 provides an M12 straight plug and M8 straight socket in one connection cable. This makes it suitable for connecting compatible sensors and automation components with different connector sizes.
3 m Cable Length
The 3 m cable provides practical reach for machine and automation installations. It supports flexible routing between field devices and control components.
3-Core PUR Cable
The cable uses a 3 x 0.34 mm² halogen-free PUR construction. Its durable design supports reliable connectivity in industrial environments.
Drag Chain Suitability
The EVC630 is designed for moving cable applications and supports drag-chain installation. It provides IP65, IP67, IP68 and IP69K protection.
3 m cable length
M12 to M8 connection
3-core PUR cable
Gold-plated contacts
High ingress protection
Suitable for drag-chain applications
Industrial sensor connections
Machine automation
Factory automation
Compact machine wiring
Production equipment
Sensor and control systems
| Specification | Details |
|---|---|
| Product Model | EVC630 |
| Order Code | VDOGF030MSS0003H03STGH030MSS |
| Product Type | Connection Cable |
| Brand | IFM |
| Plug | M12 straight |
| Socket | M8 straight |
| Number of Contacts | 3 |
| Cable Length | 3 m |
| Cable Cross Section | 3 x 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Cable Material | PUR, Halogen-free |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
