The IFM EVC629 is a 20 m connecting cable with a straight 5-pin M12 socket for reliable industrial sensor connections. Its shielded PUR cable provides extended reach, durability and dependable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

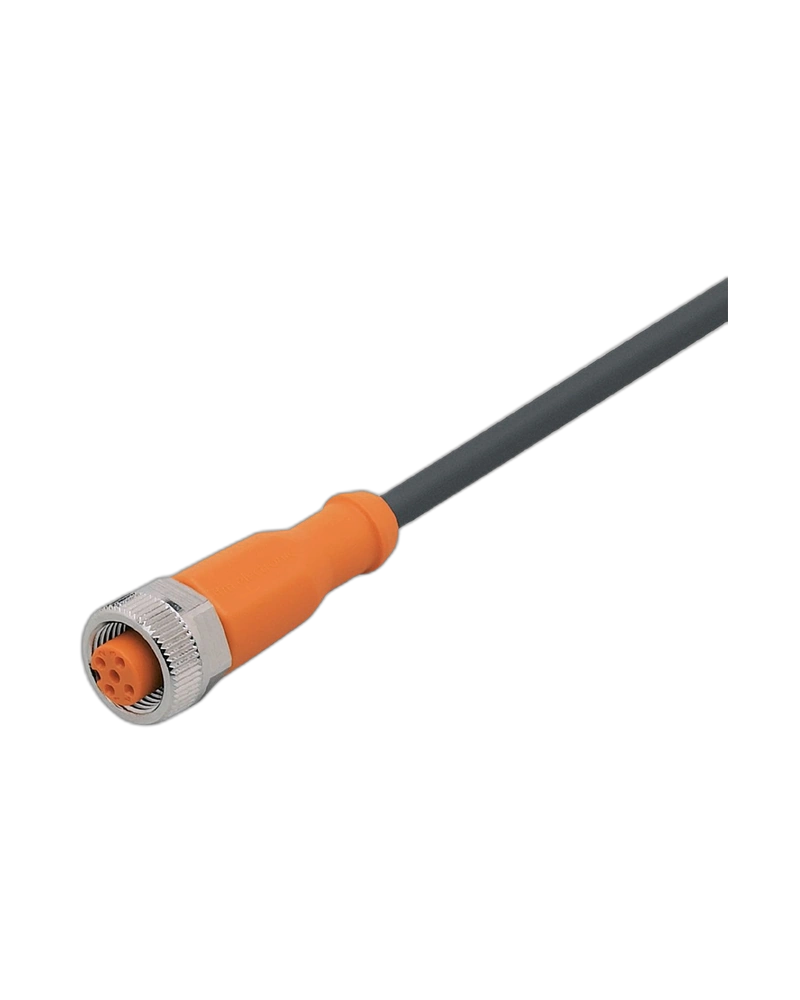

Straight M12 Socket
The EVC629 features a straight M12 socket designed for compatible industrial sensors. Its secure connector arrangement provides stable electrical connectivity.
Extended 20 m Cable
The 20 m cable offers extended reach for large machines and distributed automation installations. It supports flexible sensor placement where longer cable routing is required.
Shielded PUR Construction
The cable uses shielded, halogen-free PUR material to support reliable signal transmission. Its durable construction is suitable for industrial environments and moving applications.
High Protection and Durability
The EVC629 provides IP65, IP67, IP68 and IP69K protection. It is suitable for drag-chain applications and repeated bending.
Extended 20 m cable length
Straight 5-pin M12 socket
Shielded PUR cable
Gold-plated contacts
High ingress protection
Suitable for drag-chain applications
Industrial sensor connections
Factory automation
Machine tools
Production machinery
Industrial monitoring
Automation control systems
| Specification | Details |
|---|---|
| Product Model | EVC629 |
| Order Code | ADOGH050MSS0020C05 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 straight socket |
| Number of Contacts | 5 |
| Cable Length | 20 m |
| Cable Cross Section | 5 x 0.25 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 30 V AC / 36 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Cable Material | PUR, Halogen-free |
| Cable Type | Shielded |
| Screen Connection | Screen not connected to socket |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
| Bending Cycles | ≥2 million |
