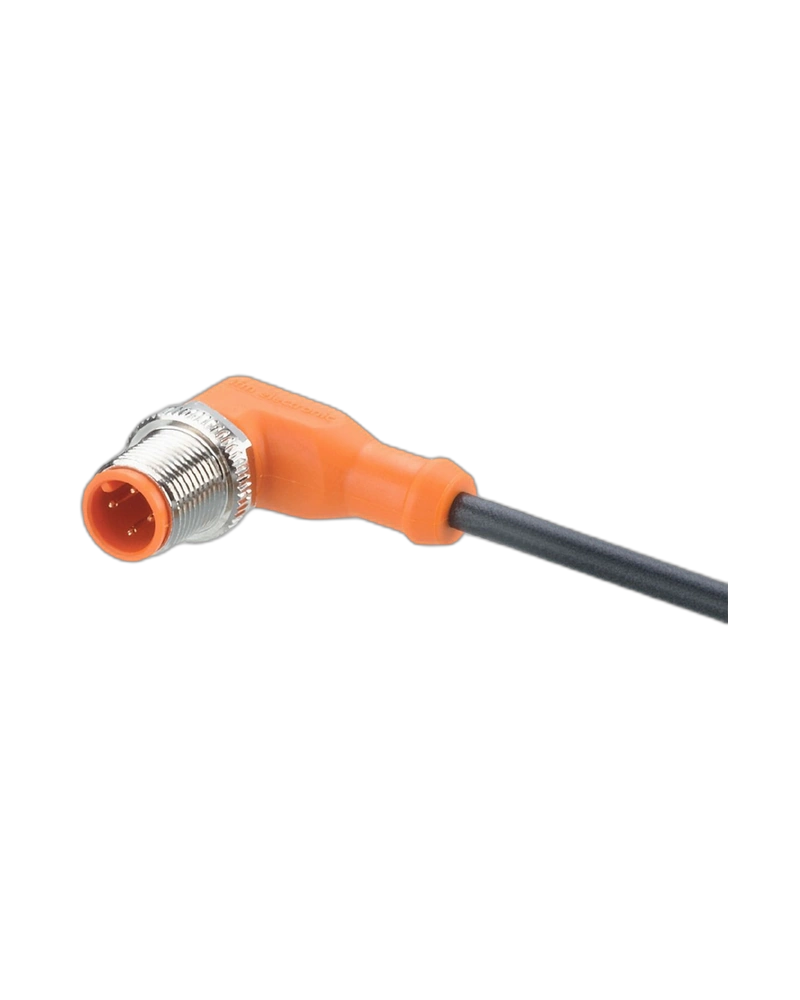

The IFM EVC628 is a 3 m connecting cable with an angled 4-pin M12 plug, designed for dependable industrial sensor and automation connections. Its PUR construction provides flexibility and durability for demanding installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Plug
The EVC628 features an angled M12 plug for convenient cable routing around sensors and machine components. The connector uses gold-plated contacts for reliable electrical connectivity.
3 m Cable Length
The 3 m cable provides practical installation reach for industrial machinery and automation systems. It supports flexible positioning of connected devices.
4-Core PUR Cable
The cable uses a 4 x 0.34 mm² halogen-free PUR construction. This provides mechanical durability and flexibility for industrial applications.
High Protection
The EVC628 offers IP65, IP67, IP68 and IP69K protection. It is also suitable for drag-chain applications and repeated cable movement.
3 m cable length
Angled 4-pin M12 plug
Halogen-free PUR cable
Gold-plated contacts
High ingress protection
Suitable for drag-chain applications
Industrial sensor connections
Machine automation
Factory automation
Machine tools
Production machinery
Automation control systems
| Specification | Details |
|---|---|
| Product Model | EVC628 |
| Order Code | ASTAH040MSS0003H04 |
| Product Type | Connecting Cable with Plug |
| Brand | IFM |
| Connector | M12 angled plug |
| Number of Contacts | 4 |
| Cable Length | 3 m |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Cable Material | PUR, Halogen-free |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
