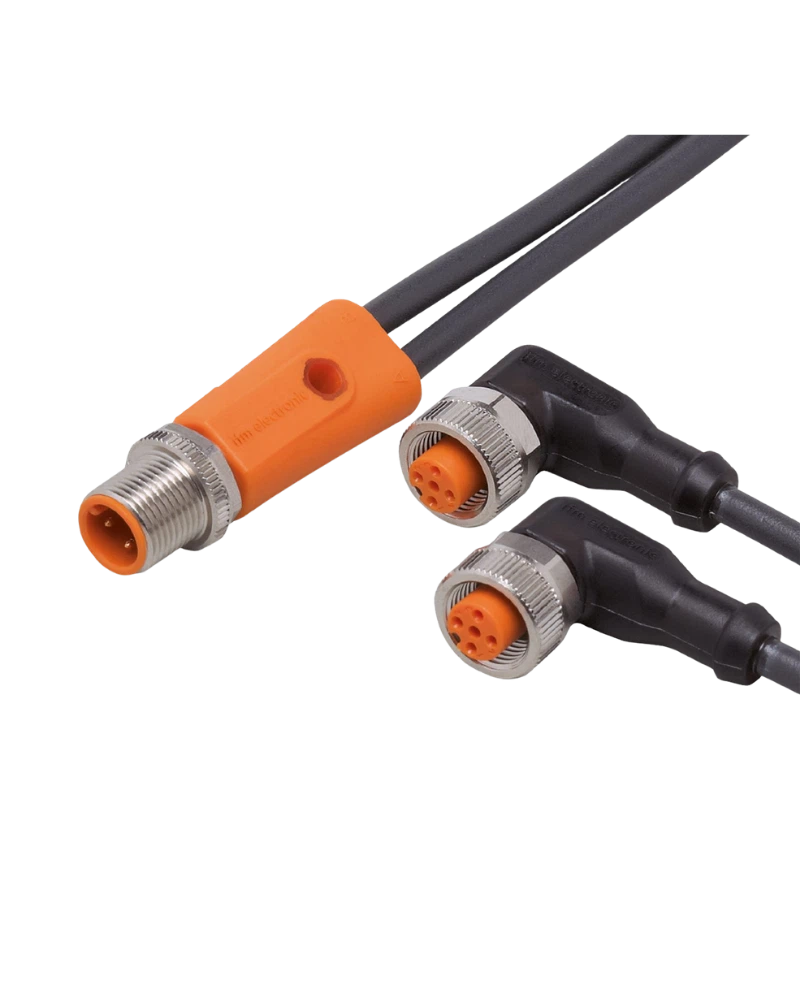

The IFM EVC623 is a 7 m Y connection cable designed for PNP sensor and automation applications. It combines an M12 plug with two M12 sockets and provides reliable signal distribution with LED status indication.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Y Connection Arrangement
The EVC623 uses one M12 plug and two M12 sockets to distribute connections between compatible automation devices. This helps simplify sensor and actuator wiring.
PNP Electrical Design
The cable is designed for DC PNP applications with a 10–36 V DC operating range. LED indicators provide useful power and output status information.
7 m PUR Cable
The 7 m halogen-free PUR cable provides extended reach for industrial installations. Its durable construction supports flexible cable routing and repeated movement.
Industrial Protection
The EVC623 offers IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications. It supports demanding industrial operating conditions.
7 m extended cable length
M12 plug with two M12 sockets
PNP electrical design
Power and output status LEDs
Halogen-free PUR construction
Suitable for drag-chain applications
PNP sensor connections
Industrial automation
Machine control systems
Factory production equipment
Sensor signal distribution
Automation monitoring systems
| Specification | Details |
|---|---|
| Product Model | EVC623 |
| Order Code | YDOAH032MSS0007H03STGH040MSS |
| Product Type | Y Connection Cable |
| Brand | IFM |
| Connection | M12 plug / 2 x M12 socket |
| Cable Length | 7 m |
| Cable Cross Section | 3 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Cable Material | PUR, Halogen-free |
| Contact Material | Gold-plated |
| Status Indication | Yellow output LED / Green power LED |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
