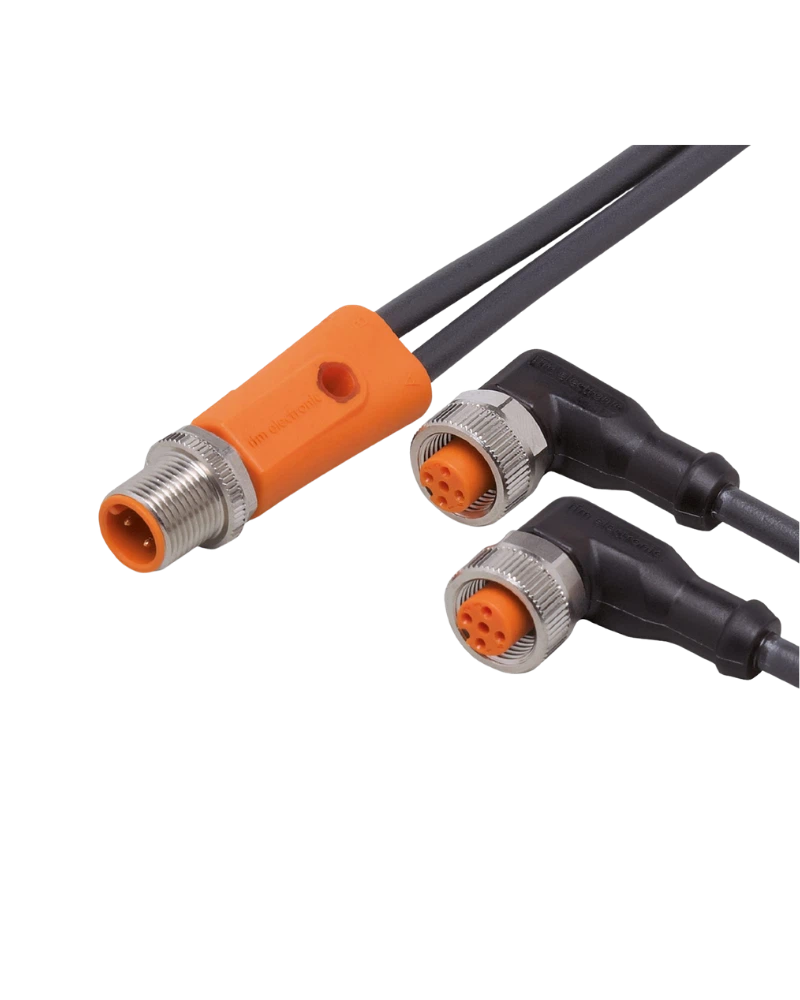

The IFM EVC622 is a 7 m Y connection cable with one M12 plug and two M12 sockets. It provides extended reach and reliable signal distribution for industrial automation and sensor applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Two-Way Y Connection
The EVC622 provides one M12 plug and two M12 sockets for efficient signal distribution. Its two-way design helps reduce wiring complexity in automation installations.
Extended 7 m Cable
The 7 m cable provides increased installation flexibility for larger machines and production systems. It supports connections between remotely positioned sensors and automation equipment.
Reliable M12 Interfaces
The M12 connectors use gold-plated contacts for dependable electrical connectivity. The secure locking design helps maintain stable connections during machine operation.
Heavy-Duty Construction
The EVC622 provides IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications. It supports repeated bending and torsional movement.
Extended 7 m cable length
M12 plug with two M12 sockets
Reliable signal distribution
Gold-plated contacts
High ingress protection
Suitable for continuous cable movement
Industrial automation systems
Machine tools
Sensor and actuator wiring
Factory production equipment
Automation control systems
Industrial monitoring applications
| Specification | Details |
|---|---|
| Product Model | EVC622 |
| Order Code | YDOAH040MSS0007H04STGH040MSS |
| Product Type | Y Connection Cable |
| Brand | IFM |
| Connection | M12 plug / 2 x M12 socket |
| Cable Length | 7 m |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Cable Material | PUR, Halogen-free |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
