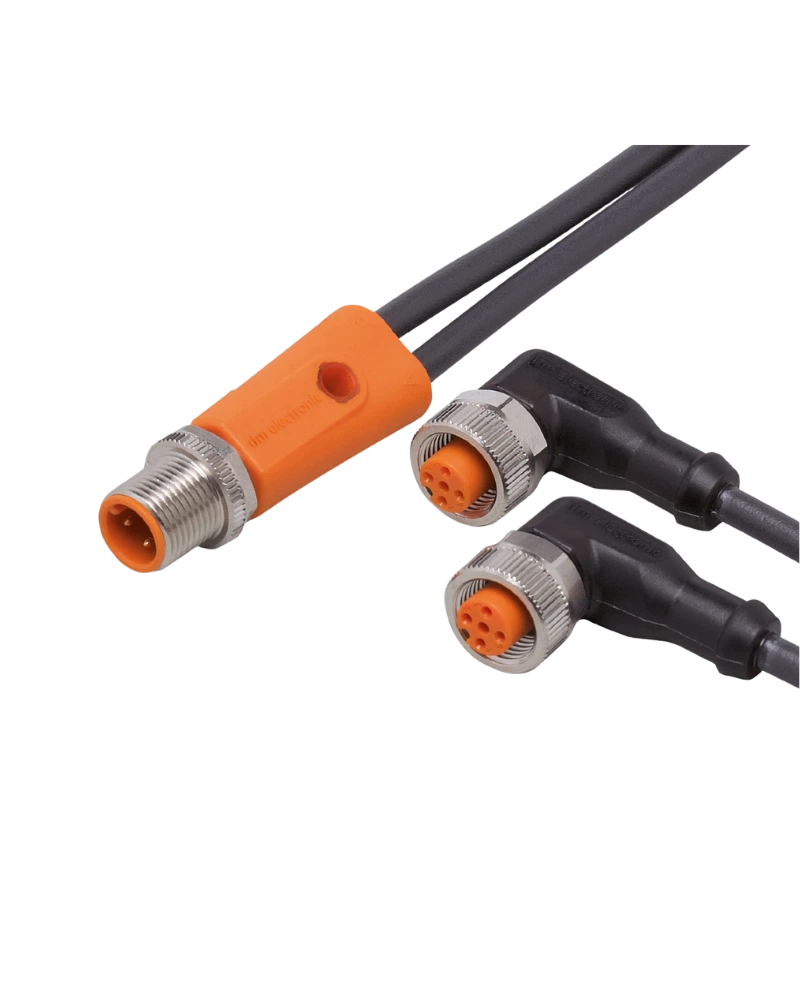

The IFM EVC620 is a 4 m Y connection cable with one M12 plug and two M12 sockets for reliable industrial sensor and automation connectivity. Its robust construction provides secure connections in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Y Connection Technology
The EVC620 uses a two-way Y connection arrangement to simplify wiring between compatible industrial devices. It is suitable for distributing connections within automation systems.
4 m Cable Length
The 4 m cable provides extended reach for machine installations and production systems. It allows flexible positioning of sensors and connected equipment.
Robust M12 Connectivity
The M12 plug and socket arrangement provides secure connections for industrial sensors. Gold-plated contacts help maintain reliable electrical signal transmission.
Industrial Durability
The cable is resistant to oils and coolants and provides high protection for harsh industrial environments. Its construction is also resistant to vibration and shock.
4 m extended cable length
M12 plug and two M12 sockets
Reliable signal distribution
Oil and coolant resistance
High ingress protection
Suitable for drag-chain applications
Industrial automation
Machine tools
Sensor and actuator connections
Factory production systems
Industrial control equipment
Automation monitoring systems
| Specification | Details |
|---|---|
| Product Model | EVC620 |
| Order Code | YDOAH040MSS0004H04STGH040MSS |
| Product Type | Y Connection Cable |
| Brand | IFM |
| Connection | M12 plug / 2 x M12 socket |
| Cable Length | 4 m |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Cable Material | PUR, Halogen-free |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
