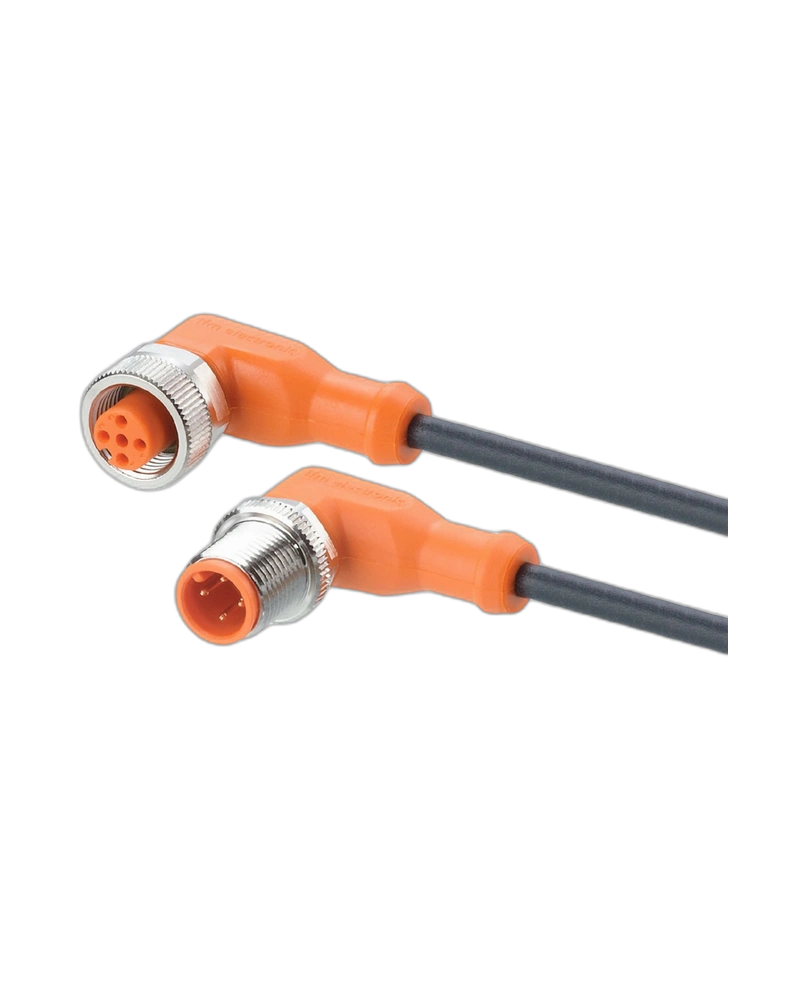

The IFM EVC617 is a 3 m connection cable with M12 plug and socket connections designed for reliable industrial automation and sensor connectivity. Its angled configuration and durable PUR cable support flexible machine installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Plug and Socket
The EVC617 features M12 plug and socket connections for dependable industrial sensor and automation connectivity. Gold-plated contacts help maintain reliable electrical signal transmission.
3 m Cable Length
The 3 m cable provides practical reach for machine installations and factory automation systems. It supports flexible routing between field devices and control equipment.
Angled Connection Design
The angled connector arrangement helps improve cable routing around machine components. It can be useful where installation space is limited or cable bending needs to be controlled.
Durable Industrial Construction
The halogen-free PUR cable is designed for demanding industrial environments and repeated movement. The cable supports drag-chain applications and provides high ingress protection.
3 m cable length
M12 plug and socket connection
Angled connector configuration
Halogen-free PUR cable
Gold-plated contacts
Suitable for drag-chain applications
Industrial sensor connections
Machine automation
Factory automation
Machine tools
Production equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Model | EVC617 |
| Order Code | VDOAH040MSS0003H04STAH040MSS |
| Product Type | Connection Cable |
| Brand | IFM |
| Connector | M12 plug / M12 socket |
| Number of Contacts | 4 |
| Cable Length | 3 m |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Configuration | Angled / Angled |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Sealing Material | Viton |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
