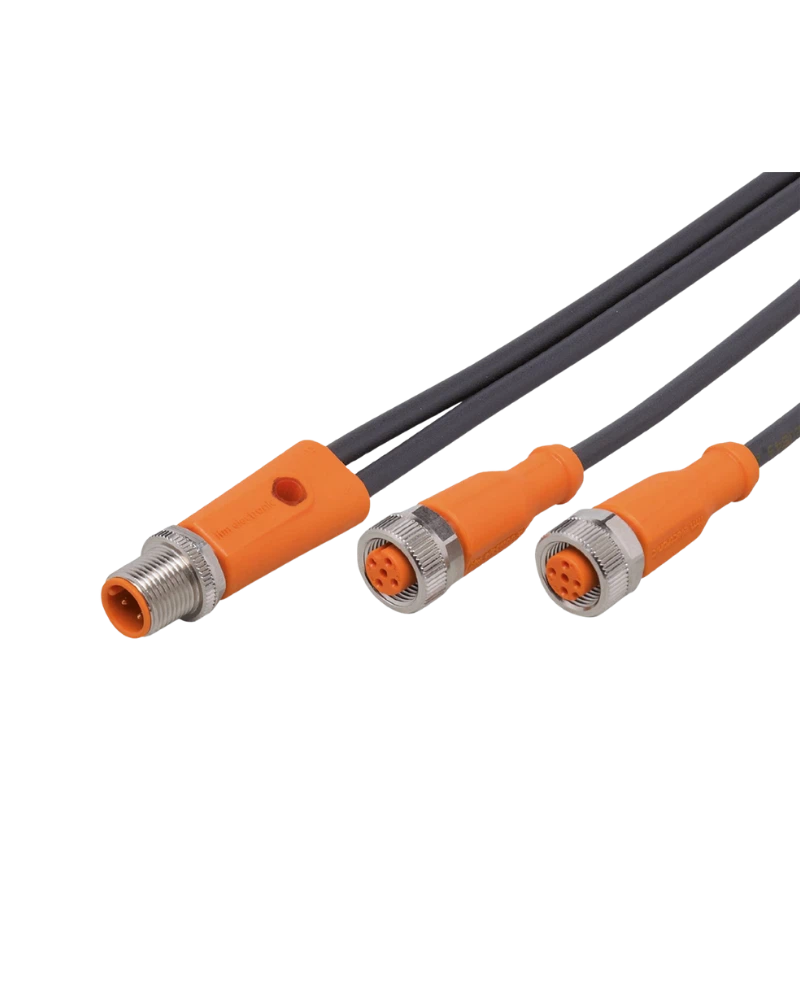

The IFM EVC614 is a 0.3 m Y connection cable with 5-pin M12 connections designed for efficient sensor and actuator wiring. Its robust PUR construction provides reliable connectivity in industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Y-Splitter Configuration
The EVC614 provides one M12 connection and two M12 connection points through a compact Y arrangement. This allows convenient signal distribution between compatible automation devices.
5-Pin M12 Connectivity
The 5-pin M12 connectors provide reliable connectivity for compatible sensors and automation components. Gold-plated contacts support stable electrical signal transmission.
Compact PUR Cable
The 0.3 m PUR cable uses 5 x 0.34 mm² conductors and provides flexibility for compact installations. The halogen-free construction is suitable for industrial environments.
High Industrial Protection
The EVC614 provides IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications. Its construction supports repeated movement, vibration and mechanical stress.
Compact 0.3 m Y connection
5-pin M12 connectivity
One-to-two connection arrangement
Halogen-free PUR cable
Gold-plated contacts
Suitable for drag-chain applications
Industrial sensor wiring
Factory automation
Machine automation
Signal distribution systems
Production equipment
Automation control systems
| Specification | Details |
|---|---|
| Product Model | EVC614 |
| Order Code | YDOGH050MSS00.3H05STGH050MSS |
| Product Type | Y Connection Cable |
| Brand | IFM |
| Cable Length | 0.3 m |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 5 x 0.34 mm² |
| Cable Diameter | 4.6 mm |
| Connector | M12 |
| Connector Configuration | 1 Plug / 2 Sockets |
| Number of Contacts | 5 |
| Coding | A |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 3 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
