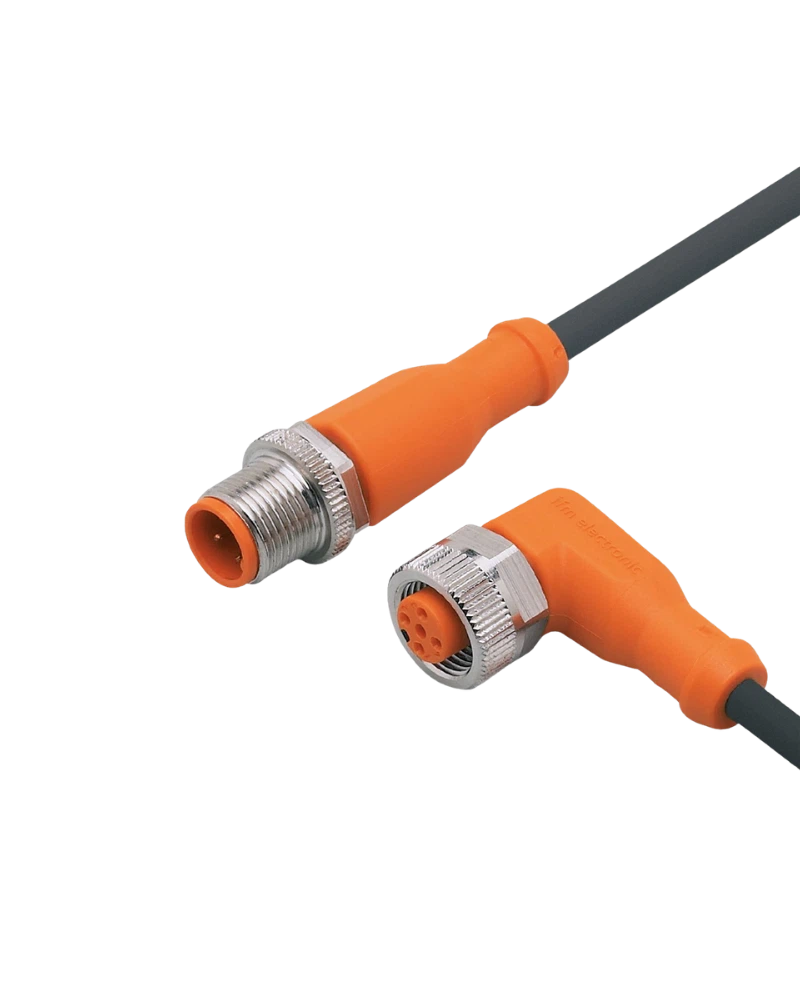

The IFM EVC613 is a 0.6 m connection cable with straight and angled M12 connectors designed for reliable industrial automation connectivity. Its compact PUR construction provides flexibility and dependable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Plug and Socket
The EVC613 combines straight and angled M12 connections for flexible sensor and automation wiring. The secure coupling system helps maintain reliable electrical contact.
Compact 0.6 m Cable
The 0.6 m cable is ideal for compact machinery and sensor installations. It helps reduce excess cable and supports clean machine wiring.
Durable PUR Cable
The halogen-free PUR cable uses 4 x 0.34 mm² conductors and provides mechanical durability. It is suitable for industrial environments requiring flexible cable routing.
Reliable Industrial Performance
The EVC613 provides high ingress protection and supports drag-chain applications. Its construction is designed for repeated bending, vibration and industrial use.
Compact 0.6 m cable
Straight and angled M12 connections
4-core PUR cable
Gold-plated contacts
High ingress protection
Suitable for drag-chain applications
Industrial automation
Sensor and actuator wiring
Machine tools
Factory production equipment
Automation control systems
Industrial monitoring applications
| Specification | Details |
|---|---|
| Product Model | EVC613 |
| Order Code | VDOAH040MSS00.6H04STGH040MSS |
| Product Type | Connection Cable |
| Brand | IFM |
| Connector | M12 plug / M12 socket |
| Configuration | Straight / Angled |
| Number of Contacts | 4 |
| Cable Length | 0.6 m |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
