The IFM EVC612 is a 4 m connection cable featuring M12 and M8 connections for reliable industrial sensor integration. Its compact multi-connector design is suitable for automation systems requiring secure and durable connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 and M8 Connectivity

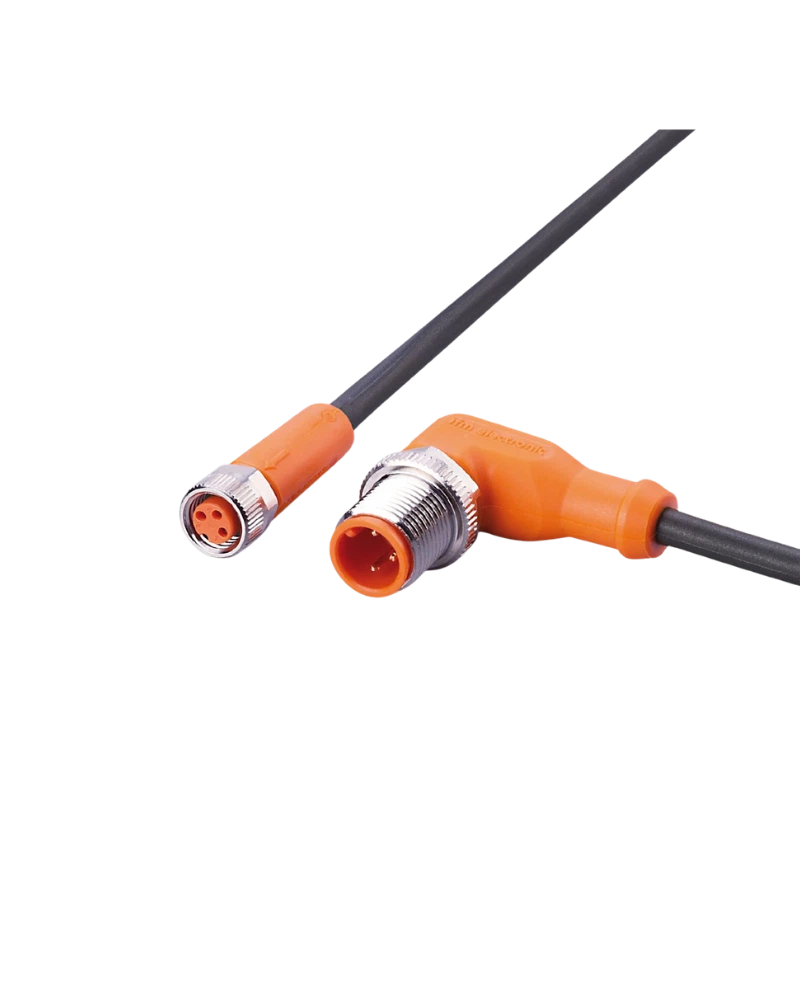

The EVC612 connects compatible devices using an M12 angled connector and M8 straight connector. This combination provides flexible connectivity for industrial sensors and automation equipment.
4 m Cable Length
The 4 m cable provides sufficient reach for machine and factory installations. It allows sensors and connected devices to be positioned with greater flexibility.
3-Core PUR Cable
The cable uses a halogen-free PUR construction with 3 x 0.34 mm² conductors. This provides reliable performance and flexibility in industrial installations.
Industrial Protection
The EVC612 provides IP65, IP67, IP68 and IP69K protection. It is also designed for drag-chain applications and repeated mechanical movement.
4 m cable length
M12 and M8 connector combination
3-core PUR cable
Halogen-free construction
Gold-plated contacts
Suitable for moving applications
Industrial sensor connections
Machine automation
Factory automation
Machine tools
Automation control systems
Industrial monitoring equipment
| Specification | Details |
|---|---|
| Product Model | EVC612 |
| Order Code | VDOGF030MSS0004H03STAH030MSS |
| Product Type | Connection Cable |
| Brand | IFM |
| M12 Connector | Angled |
| M8 Connector | Straight |
| Number of Contacts | 3 |
| Cable Length | 4 m |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 3 x 0.34 mm² |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
