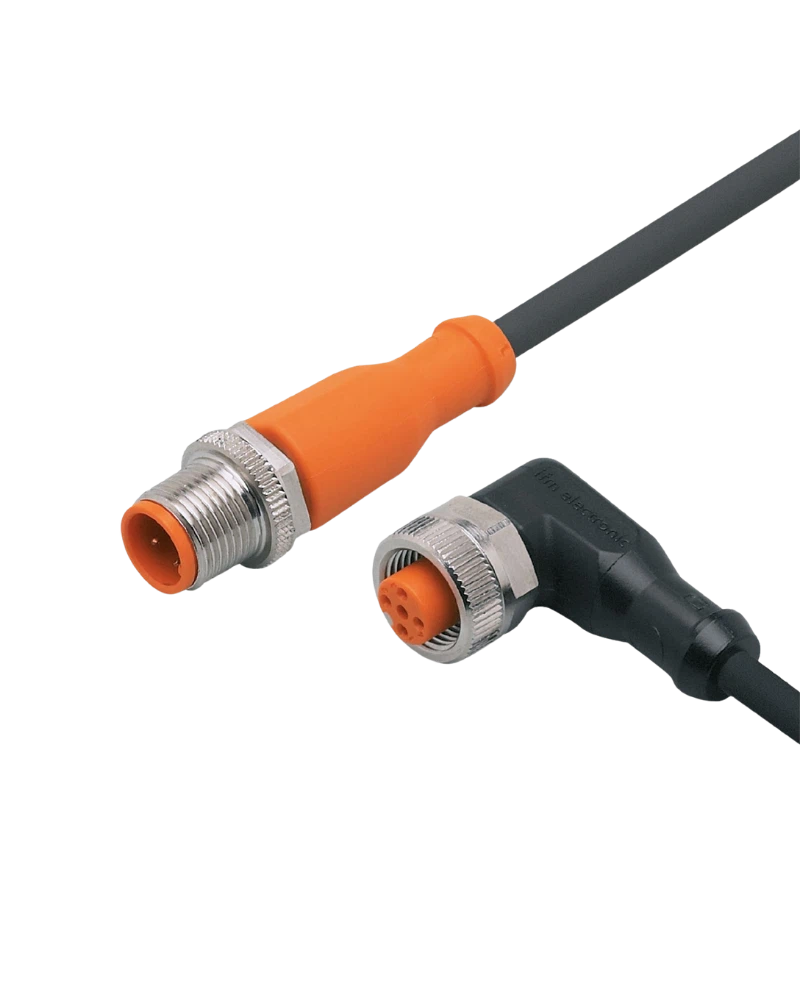

The IFM EVC610 is a 7.5 m connection cable with M12 plug and socket connections designed for reliable industrial automation applications. Its straight-to-angled configuration provides flexible installation and dependable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Plug and Socket
The EVC610 provides M12 plug and socket connections for compatible industrial automation devices. The connector arrangement supports secure and reliable sensor connectivity.
7.5 m Cable Length
The 7.5 m cable provides extended reach for machines and production systems. It allows sensors and control components to be positioned with greater installation flexibility.
PUR Cable Construction
The cable uses a halogen-free PUR construction with 4 x 0.34 mm² conductors. This provides flexibility and mechanical durability for industrial applications.
High Protection and Flexibility
The EVC610 provides IP65, IP67, IP68 and IP69K protection and supports drag-chain operation. It is designed for repeated movement and demanding industrial environments.
Extended 7.5 m cable length
M12 plug and socket configuration
Straight-to-angled connection
Halogen-free PUR cable
Gold-plated contacts
Suitable for drag-chain applications
Industrial automation
Sensor and actuator connections
Machine tools
Production machinery
Factory automation systems
Industrial control equipment
| Specification | Details |
|---|---|
| Product Model | EVC610 |
| Order Code | VDOAH043MSS07.5H04STGH040MSS |
| Product Type | Connection Cable |
| Brand | IFM |
| Connector | M12 plug / M12 socket |
| Cable Length | 7.5 m |
| Cable Configuration | Straight / Angled |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
