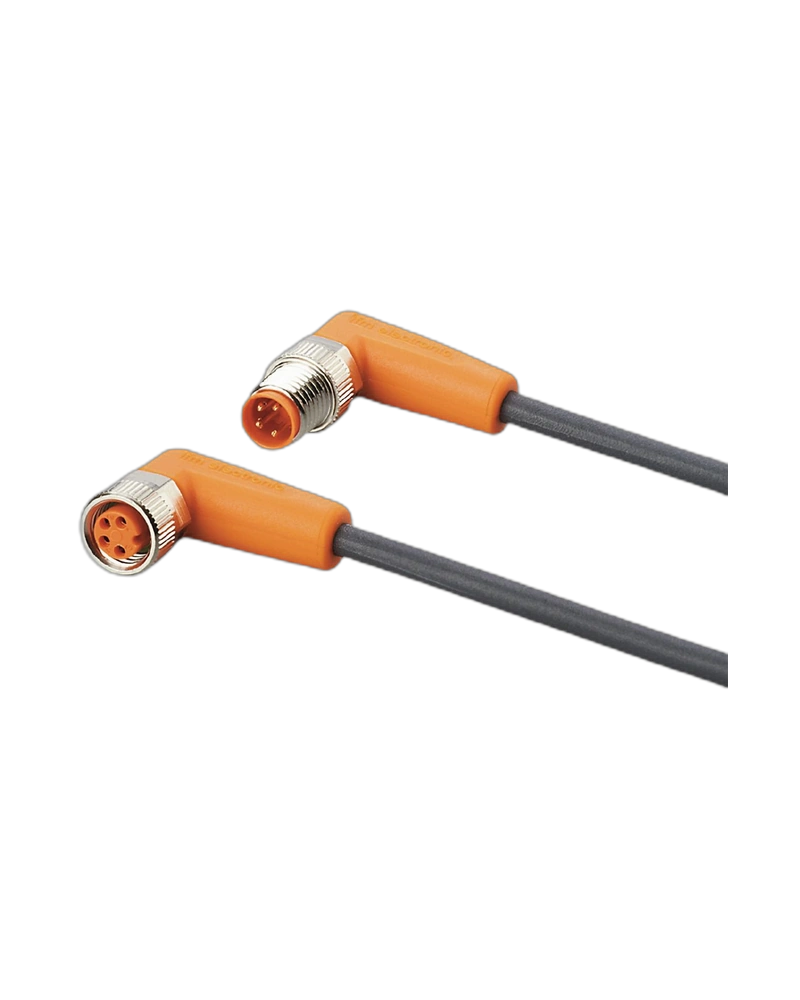

The IFM EVC598 is a compact 0.3 m connection cable designed for reliable M12 sensor and automation connections. Its 5-core PUR construction provides flexibility and dependable performance in industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Connection
The EVC598 provides a robust M12 connection suitable for compatible industrial sensors and automation devices. The connector design supports secure and stable electrical connectivity.
Compact 0.3 m Cable
The short cable length is ideal for compact machine installations where excessive cable length is unnecessary. It helps maintain organized wiring around sensors and automation components.
5-Core PUR Cable
The cable uses a 5 x 0.34 mm² PUR construction with a 4.6 mm diameter. Its halogen-free material provides flexibility and mechanical durability.
Industrial Performance
The cable is designed for harsh industrial environments and supports drag-chain applications. Its construction provides high protection and resistance to repeated movement.
Compact 0.3 m cable length
5-core industrial connection
Durable PUR construction
Gold-plated contacts
High ingress protection
Suitable for moving applications
Industrial sensor connections
Machine automation
Factory automation
Production machinery
Compact machine installations
Industrial control systems
| Specification | Details |
|---|---|
| Product Model | EVC598 |
| Order Code | VDOAH050MSS00.3H05STAH050MSS |
| Product Type | Connection Cable |
| Brand | IFM |
| Connector | M12 |
| Number of Contacts | 5 |
| Cable Length | 0.3 m |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 5 x 0.34 mm² |
| Cable Diameter | 4.6 mm |
| Protection Class | II |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
