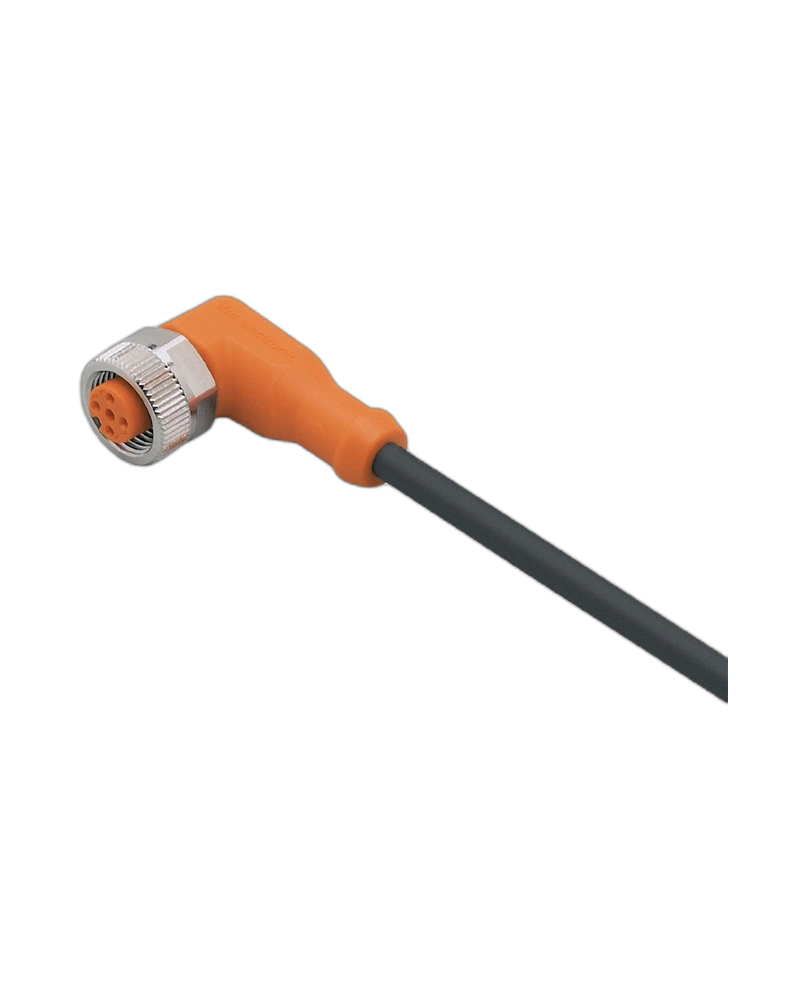

The IFM EVC597 is a 20 m connecting cable with an angled M12 socket designed for dependable industrial sensor and automation connections. Its shielded PUR construction supports reliable signal transmission in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket
The angled M12 socket provides convenient cable routing where installation space is limited. Gold-plated contacts support stable and reliable electrical connectivity.
Extended Cable Length
The 20 m cable provides extended reach for large machines and distributed automation systems. It offers greater flexibility when connecting remote sensors to control equipment.
Shielded PUR Cable
The cable uses shielded, halogen-free PUR material for mechanical durability and reliable signal transmission. It is suitable for industrial applications involving movement and cable-chain operation.
Industrial Protection
The EVC597 provides IP65, IP67, IP68 and IP69K protection. It is suitable for industrial automation, machine tools and environments involving coolants and lubricants.
Extended 20 m cable length
Angled 4-pin M12 socket
Shielded PUR cable
Gold-plated contacts
High ingress protection
Suitable for drag-chain applications
Industrial sensor wiring
Machine automation
Machine tools
Factory production systems
Automation control equipment
Industrial monitoring systems
| Specification | Details |
|---|---|
| Product Model | EVC597 |
| Order Code | ADOAH040MSS0020C04 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 angled socket |
| Number of Contacts | 4 |
| Cable Length | 20 m |
| Cable Material | PUR, Halogen-free |
| Cable Type | Shielded |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
