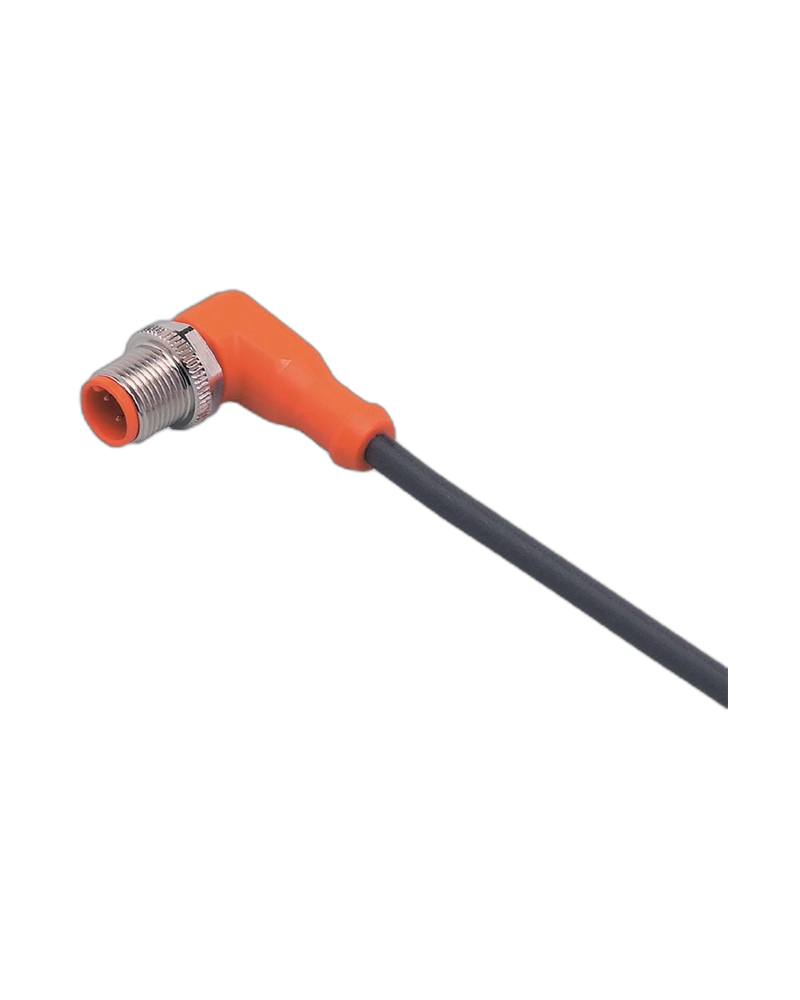

The IFM EVC596 is a 20 m connecting cable with an angled M12 plug, designed for reliable sensor and automation connections. Its halogen-free PUR cable offers flexibility and durability for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Plug
The EVC596 features an angled M12 plug that supports convenient cable routing around sensors and machine components. The robust connector design provides secure and stable electrical connectivity.
Extended 20 m Cable
The 20 m cable length provides extended reach for large machines and distributed automation installations. It helps connect field devices positioned away from control equipment.
Durable PUR Construction
The cable is manufactured using halogen-free PUR material for flexibility and mechanical durability. Its construction is suitable for industrial environments where reliable cable performance is required.
Industrial Protection
The EVC596 offers high ingress protection and is suitable for demanding industrial conditions. It is also designed for flexible and drag-chain applications with repeated movement.
Extended 20 m cable length
Angled M12 plug connection
Halogen-free PUR cable
Gold-plated contacts
High ingress protection
Suitable for drag-chain applications
Industrial sensor connections
Factory automation systems
Machine tools
Production machinery
Industrial control systems
Automation equipment
| Specification | Details |
|---|---|
| Product Model | EVC596 |
| Order Code | ASTAH030MSS0020H03 |
| Product Type | Connecting Cable with Plug |
| Brand | IFM |
| Connector | M12 angled plug |
| Number of Contacts | 3 |
| Cable Length | 20 m |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 3 x 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Drag Chain Suitability | Yes |
