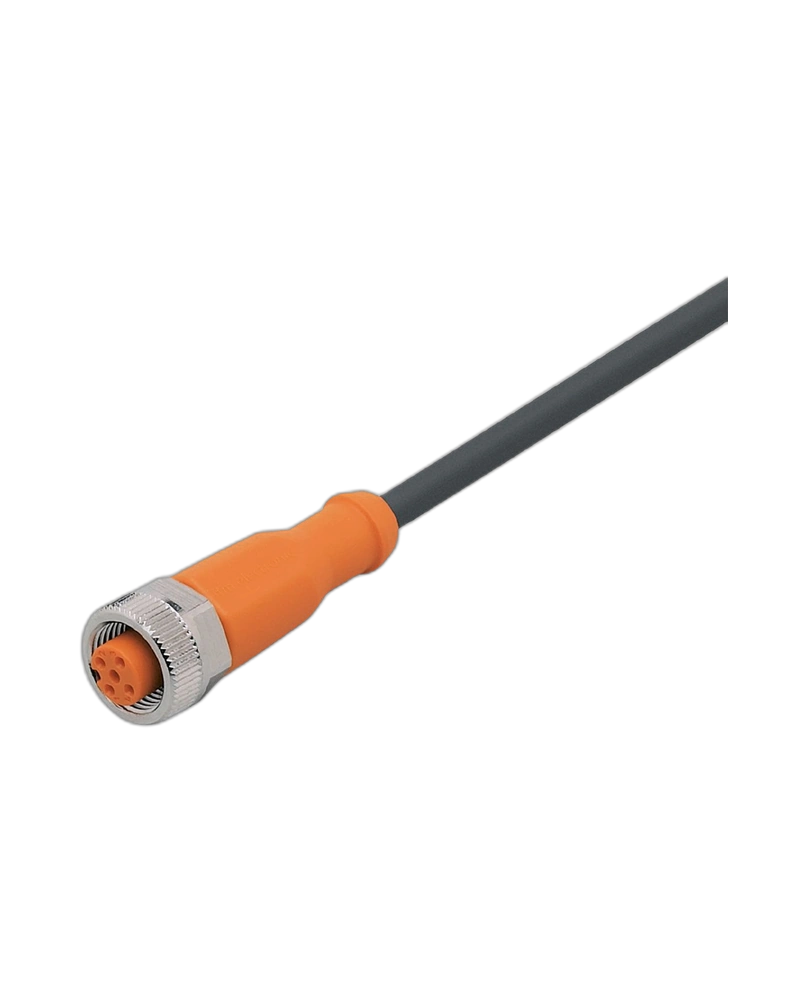

The IFM EVC544 is a 2 m connecting cable with a 5-pin straight M12 socket designed for reliable industrial sensor and automation connectivity. Its shielded PUR construction provides dependable signal transmission and mechanical durability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Straight M12 Socket
The EVC544 features a straight 5-pin M12 socket for secure connection to compatible industrial sensors. The locking mechanism supports stable connectivity during machine operation.
5-Pin Connectivity
The 5-pin interface provides reliable electrical connectivity for compatible industrial automation devices. Gold-plated contacts help ensure consistent signal transmission.
Shielded PUR Cable
The 2 m shielded PUR cable provides flexibility and mechanical durability. Its halogen-free construction is suitable for demanding industrial automation environments.
Industrial Protection
The EVC544 provides IP65 and IP67 protection and is designed for moving cable applications. Its robust construction supports reliable operation under vibration and mechanical stress.
Compact 2 m cable length
5-pin straight M12 socket
Shielded PUR cable
Gold-plated contacts
Halogen-free construction
Suitable for moving applications
Industrial sensor connections
Factory automation
Machine tools
Production machinery
Automation control systems
Industrial monitoring equipment
| Specification | Details |
|---|---|
| Product Model | EVC544 |
| Order Code | ADOGH050MSS0002K05 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 straight socket |
| Number of Contacts | 5 |
| Cable Length | 2 m |
| Cable Material | PUR, Halogen-free |
| Cable Type | Shielded |
| Cable Cross Section | 5 x 0.25 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 30 V AC / 36 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
| Bending Cycles | ≥ 2 million |
| Torsional Strain | ±180°/m |
