The IFM EVC543 is a 10 m connecting cable with a 4-pin angled M12 socket designed for reliable industrial automation connections. Its shielded PUR cable provides extended reach, flexibility and dependable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

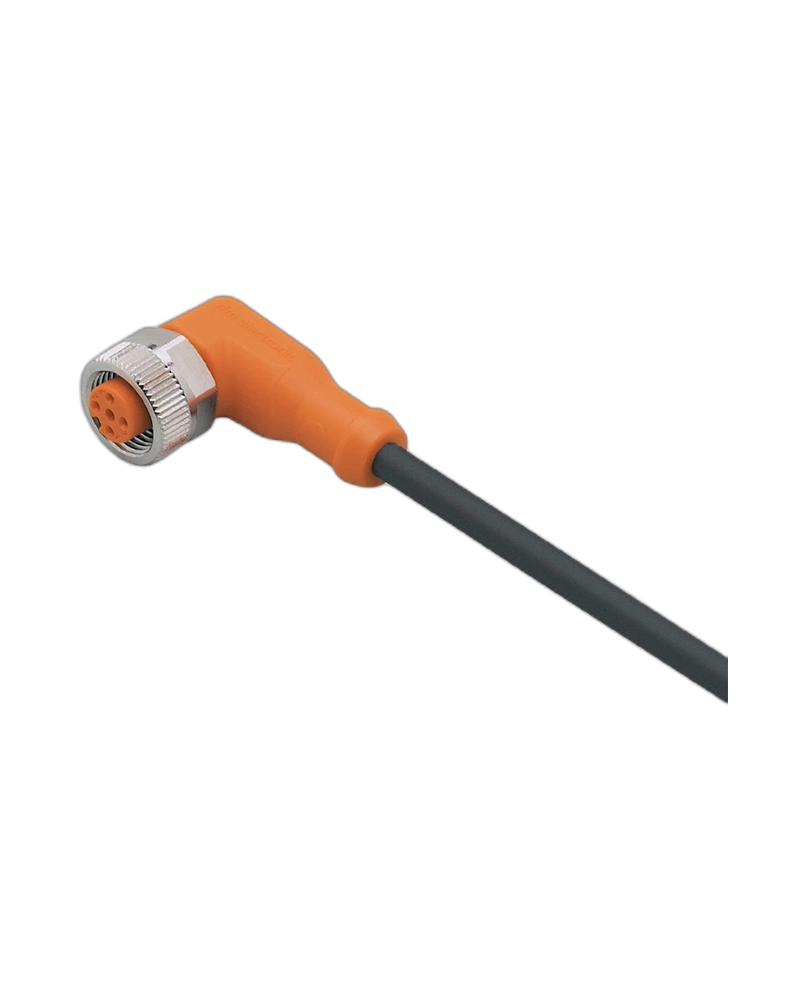

Angled M12 Socket
The EVC543 uses an angled M12 socket for convenient cable routing in machinery and compact installations. The secure connector design helps maintain stable connections.
Extended 10 m Length
The 10 m cable provides greater installation flexibility for large machines and distributed automation systems. It allows field sensors to be connected over longer distances.
Shielded PUR Cable
The shielded and halogen-free PUR cable provides mechanical durability and reliable signal transmission. It is suitable for moving applications and industrial automation environments.
Industrial Protection
The EVC543 is designed for industrial operating conditions and provides IP65 and IP67 protection. Its construction supports reliable performance in demanding environments.
Extended 10 m cable length
Angled 4-pin M12 socket
Shielded PUR cable
Gold-plated contacts
Suitable for drag-chain applications
Reliable signal transmission
Industrial sensor connections
Factory automation
Machine tools
Production equipment
Industrial control systems
Automation and monitoring applications
| Specification | Details |
|---|---|
| Product Model | EVC543 |
| Order Code | ADOAH040MSS0010K04 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 angled socket |
| Number of Contacts | 4 |
| Cable Length | 10 m |
| Cable Material | PUR, Halogen-free |
| Cable Type | Shielded |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
| Bending Cycles | ≥ 2 million |
| Torsional Strain | ±180°/m |
