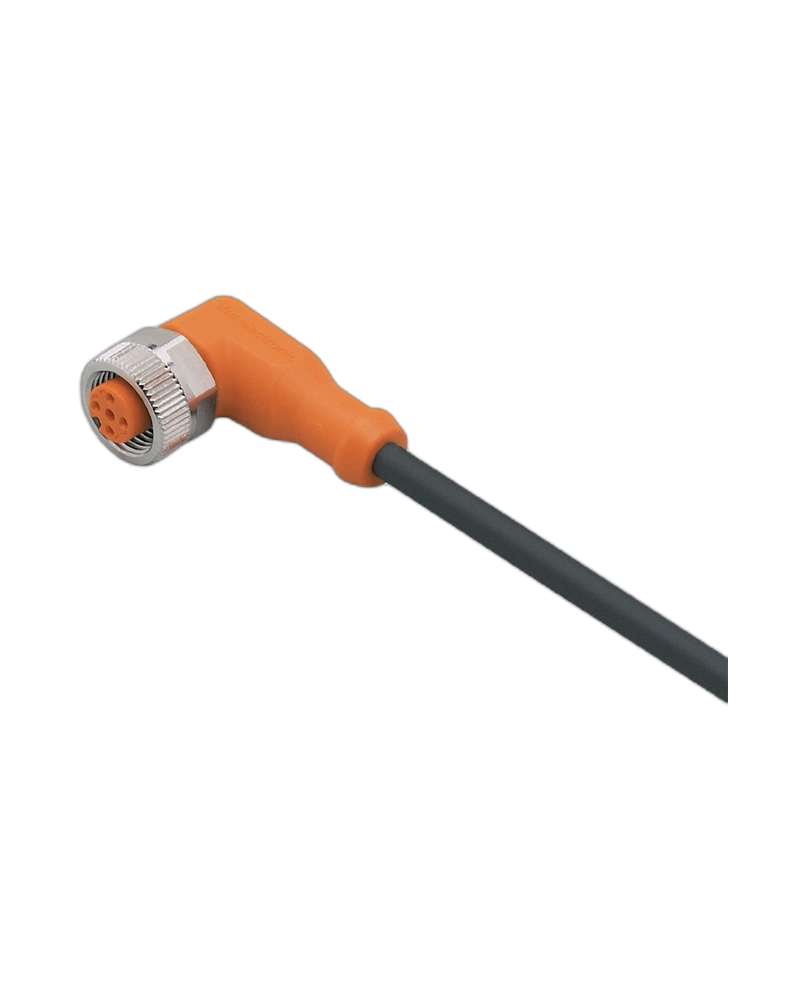

The IFM EVC542 is a 5 m connecting cable with a 4-pin angled M12 socket designed for reliable industrial sensor and automation connections. Its shielded PUR construction provides flexibility, durability and dependable connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Connection
The angled socket design supports convenient cable routing around sensors and machinery. It is useful for installations where straight cable routing is difficult.
5 m Cable Length
The 5 m cable provides additional reach for industrial machines and automation systems. It supports flexible installation between field sensors and control equipment.
Shielded PUR Construction
The shielded PUR cable provides mechanical durability and helps maintain reliable signal transmission. It is halogen-free and suitable for demanding industrial applications.
Flexible Industrial Operation
The EVC542 is suitable for moving cable applications and drag-chain installations. Its construction supports repeated bending and torsional movement.
5 m cable length
Angled 4-pin M12 socket
Shielded PUR cable
Gold-plated contacts
Suitable for moving applications
Reliable industrial connectivity
Industrial automation
Sensor and actuator connections
Machine tools
Factory production systems
Automation control equipment
Industrial monitoring
| Specification | Details |
|---|---|
| Product Model | EVC542 |
| Order Code | ADOAH040MSS0005K04 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 angled socket |
| Number of Contacts | 4 |
| Cable Length | 5 m |
| Cable Material | PUR, Halogen-free |
| Cable Type | Shielded |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | < 50 V AC / < 60 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
| Bending Cycles | ≥ 2 million |
| Torsional Strain | ±180°/m |
