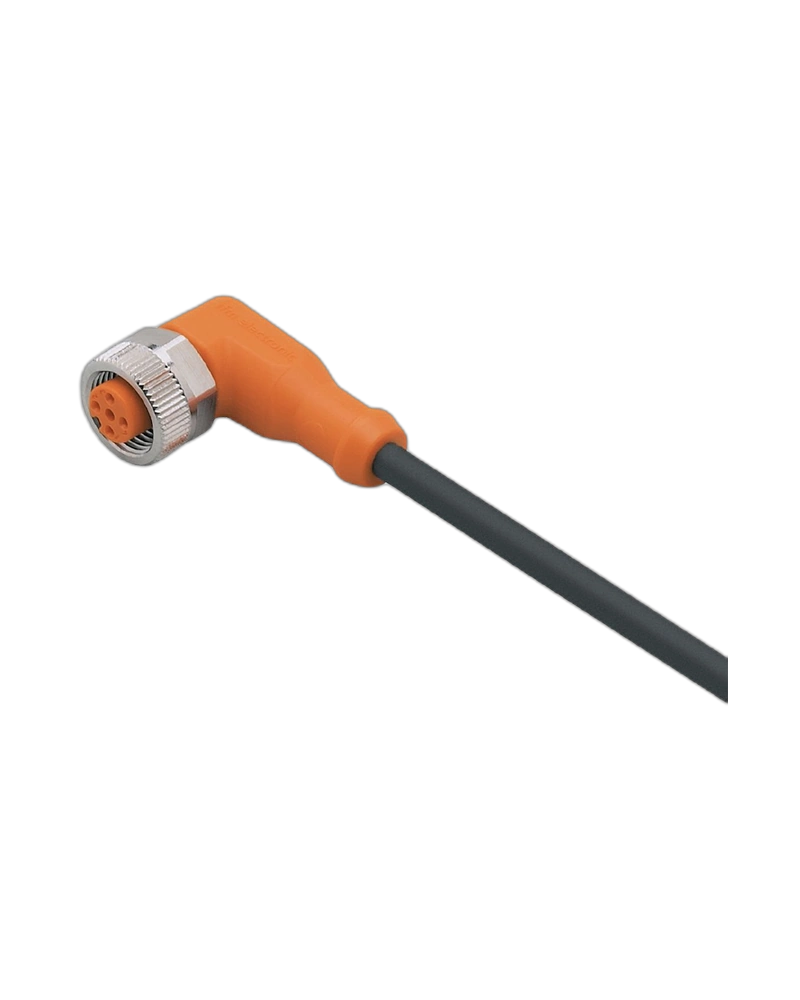

The IFM EVC541 is a 2 m connecting cable with a 4-pin angled M12 socket designed for reliable industrial sensor and automation connectivity. Its shielded PUR cable supports flexible routing and dependable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket
The angled M12 socket provides convenient cable routing in compact installations. It helps reduce cable space requirements around sensors and machine components.
4-Pin Connection
The 4-pin M12 interface provides reliable connectivity for compatible industrial sensors. Gold-plated contacts support stable electrical signal transmission.
Shielded PUR Cable
The 2 m cable uses shielded, halogen-free PUR material for mechanical durability and reliable operation. It is suitable for flexible industrial installations.
Drag Chain Compatibility
The EVC541 is designed for moving cable applications and can be used in drag-chain installations. Its construction supports repeated bending and torsional movement.
Compact 2 m cable
Angled 4-pin M12 socket
Shielded PUR construction
Gold-plated contacts
Suitable for moving applications
Reliable industrial protection
Industrial sensor connections
Machine automation
Factory automation
Machine tools
Production equipment
Automation control systems
| Specification | Details |
|---|---|
| Product Model | EVC541 |
| Order Code | ADOAH040MSS0002K04 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 angled socket |
| Number of Contacts | 4 |
| Cable Length | 2 m |
| Cable Material | PUR, Halogen-free |
| Cable Type | Shielded |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
| Bending Cycles | ≥ 2 million |
| Torsional Strain | ±180°/m |
