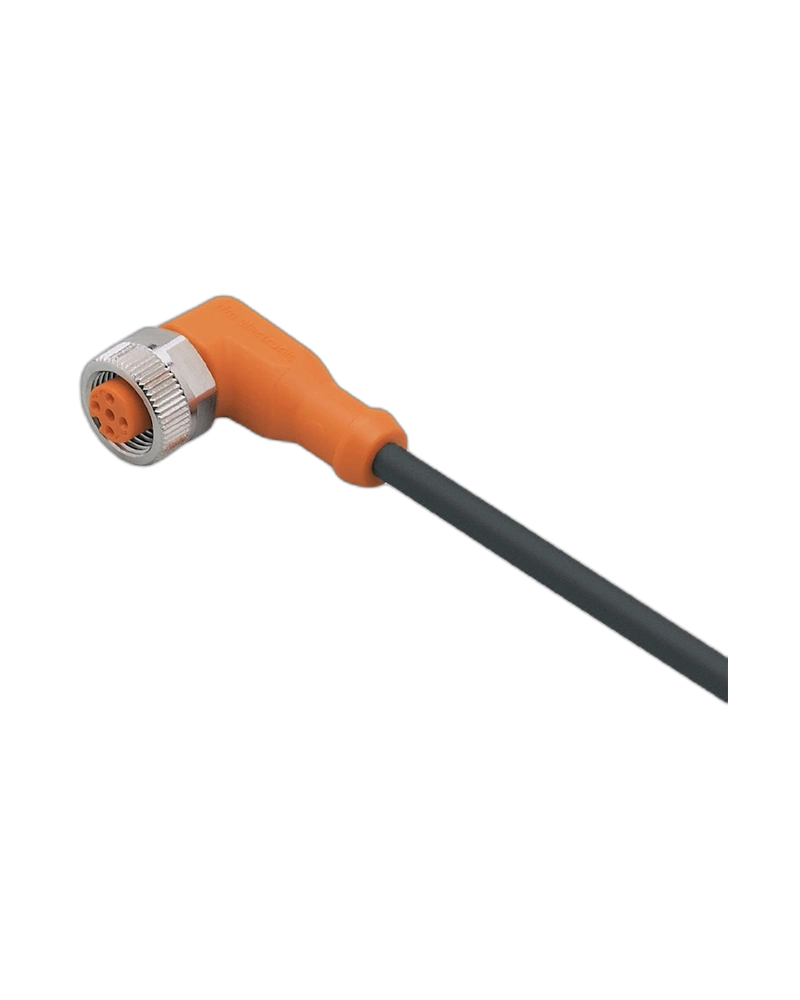

The IFM EVC537 is a 10 m connecting cable with a 5-pin angled M12 socket for reliable industrial sensor and automation connections. Its shielded PUR construction provides durability and dependable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket
The angled connector design allows flexible cable routing around machinery and sensors. It is particularly useful where installation space is restricted.
Extended 10 m Cable
The 10 m cable provides greater installation flexibility for larger machines and distributed automation systems. It helps connect field devices positioned away from control equipment.
Shielded PUR Cable
The cable uses a shielded, halogen-free PUR construction designed for industrial applications. It provides flexibility and mechanical durability for demanding installations.
High Protection
The EVC537 provides IP65, IP67, IP68 and IP69K protection. It is suitable for industrial environments involving vibration, shock and exposure to oils or coolants.
Extended 10 m cable length
5-pin angled M12 socket
Shielded PUR construction
Gold-plated contacts
High ingress protection
Suitable for moving cable applications
Industrial automation systems
Machine tools
Sensor and actuator connections
Factory production equipment
Automation control systems
Industrial monitoring applications
| Specification | Details |
|---|---|
| Product Model | EVC537 |
| Order Code | ADOAH050MSS0010C05 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 angled socket |
| Number of Contacts | 5 |
| Cable Length | 10 m |
| Cable Material | PUR, Halogen-free |
| Cable Type | Shielded |
| Cable Cross Section | 5 x 0.25 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | 30 V AC / 36 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Protection | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
| Bending Cycles | ≥ 2 million |
