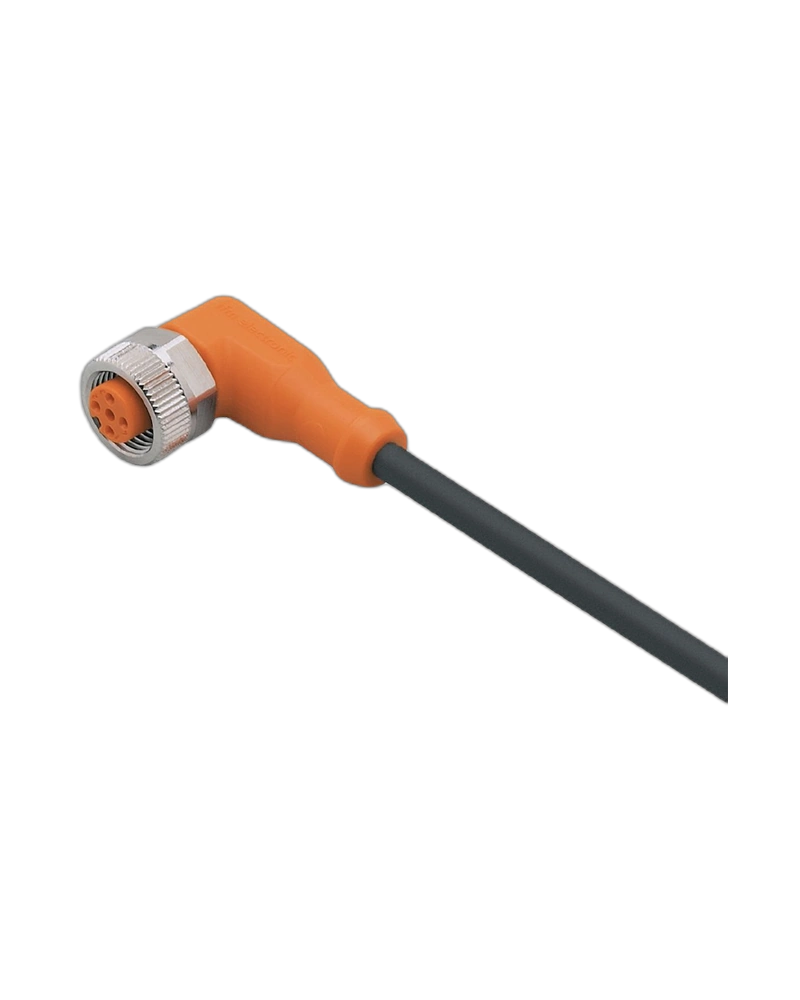

The IFM EVC535 is a 2 m connecting cable with a 5-pin angled M12 socket, designed for reliable industrial sensor and automation connections. Its shielded PUR construction provides dependable performance in demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket
The EVC535 features an angled M12 socket that allows convenient cable routing in compact machine installations. The secure locking arrangement helps maintain a stable connection during operation.
5-Pin Connectivity
The 5-pin M12 interface provides reliable connectivity for compatible sensors and automation devices. Gold-plated contacts support consistent electrical signal transmission.
Durable PUR Cable
The 2 m PUR cable provides flexibility and mechanical durability for industrial applications. Its shielded and halogen-free construction supports reliable operation in demanding environments.
Industrial Protection
The cable is designed for industrial automation and provides high ingress protection. It is suitable for applications involving vibration, movement and exposure to industrial fluids.
Reliable angled M12 socket connection
5-pin industrial connectivity
Compact 2 m cable length
Shielded and halogen-free PUR cable
Gold-plated contacts
Suitable for moving cable applications
Industrial sensor connections
Factory automation systems
Machine tools
Production machinery
Automation control systems
Industrial monitoring equipment
| Specification | Details |
|---|---|
| Product Model | EVC535 |
| Order Code | ADOAH050MSS0002C05 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 angled socket |
| Number of Contacts | 5 |
| Cable Length | 2 m |
| Cable Material | PUR, Halogen-free |
| Cable Type | Shielded |
| Cable Cross Section | 5 x 0.25 mm² |
| Electrical Design | AC/DC |
| Operating Voltage | 30 V AC / 36 V DC |
| Current Rating | 4 A |
| Protection Class | III |
| Protection | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
