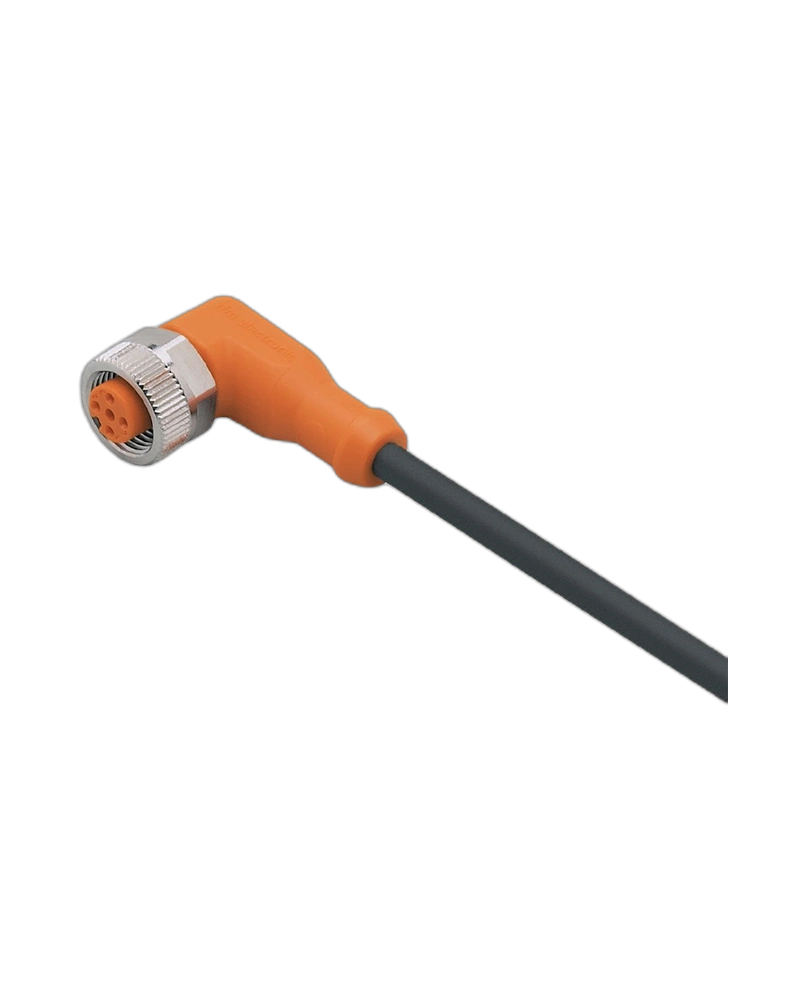

The IFM EVC531 is a 10 m connecting cable with M12 socket designed for reliable industrial sensor and automation connections. Its angled connector and shielded PUR cable provide flexible installation and dependable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket
The EVC531 uses an angled M12 socket that supports convenient cable routing in compact machine installations. The secure locking arrangement helps maintain reliable connectivity.
10 m Cable
The 10 m cable provides extended reach for larger machines and industrial automation systems. It allows flexible connection between field sensors and control equipment.
Shielded PUR Construction
The halogen-free, shielded PUR cable provides mechanical durability and supports reliable signal transmission. It is suitable for demanding industrial applications.
High Protection
The EVC531 provides IP65, IP67, IP68 and IP69K protection. It is designed for applications exposed to vibration, shock, oils and coolants.
Extended 10 m cable length
Angled M12 socket
Shielded PUR cable
Gold-plated contacts
Suitable for drag-chain applications
High protection rating
Industrial sensor connections
Machine automation
Factory automation
Machine tools
Production equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Model | EVC531 |
| Order Code | ADOAH040MSS0010C04 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 angled socket |
| Cable Length | 10 m |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 4 x 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | AC/DC |
| Operating Voltage | < 50 V AC / < 60 V DC |
| Maximum Current | 4 A |
| Protection Class | III |
| Protection | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
